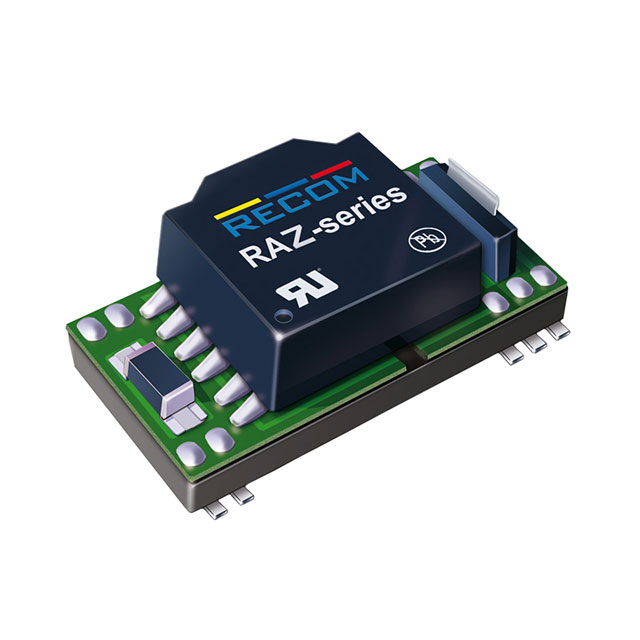

RAZ-0505S/H-R

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 1W 05VIN 05VOUT 2KVDC ISO

Search across all available documentation for this part.

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 1W 05VIN 05VOUT 2KVDC ISO

Technical Specifications

Parameters and characteristics for this part

Isolated DC/DC Converters - SMD 1W 05VIN 05VOUT 1kVDC ISO

Part	Voltage - Output 1	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Isolation	Current - Output (Max) [Max]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Efficiency	Features	Type
RECOM Power RAZ-2405S/H-R	5 V	21.6 V	26.4 V	2000 V	200 mA	1	85 °C	-40 °C	ITE (Commercial)	69 %	SCP	Isolated Module
RECOM Power RAZ-2405S	5 V	21.6 V	26.4 V	1000 V	200 mA	1	85 °C	-40 °C	ITE (Commercial)	69 %	SCP	Isolated Module
RECOM Power RAZ-1205S/H-R	5 V	10.8 V	13.2 V	2000 V	200 mA	1	85 °C	-40 °C	ITE (Commercial)	68 %	SCP	Isolated Module
RECOM Power RAZ-1205S	5 V	10.8 V	13.2 V	1000 V	200 mA	1	85 °C	-40 °C	ITE (Commercial)	68 %	SCP	Isolated Module
RECOM Power RAZ-0505S-R	5 V	4.5 V	5.5 V	1000 V	200 mA	1	85 °C	-40 °C	ITE (Commercial)	67 %	SCP	Isolated Module
RECOM Power RAZ-2405S/H	5 V	21.6 V	26.4 V	2000 V	200 mA	1	85 °C	-40 °C	ITE (Commercial)	69 %	SCP	Isolated Module
RECOM Power RAZ-0505S/H-R	5 V	4.5 V	5.5 V	2000 V	200 mA	1	85 °C	-40 °C	ITE (Commercial)	67 %	SCP	Isolated Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 16.15
	Digi-Reel®	1	$ 16.15
	Tape & Reel (TR)	400	$ 13.46

General part information

Isolated DC/DC Converters - SMD 1W 05VIN 05VOUT 1kVDC ISO
