56S105-015N5

Active

Rosenberger

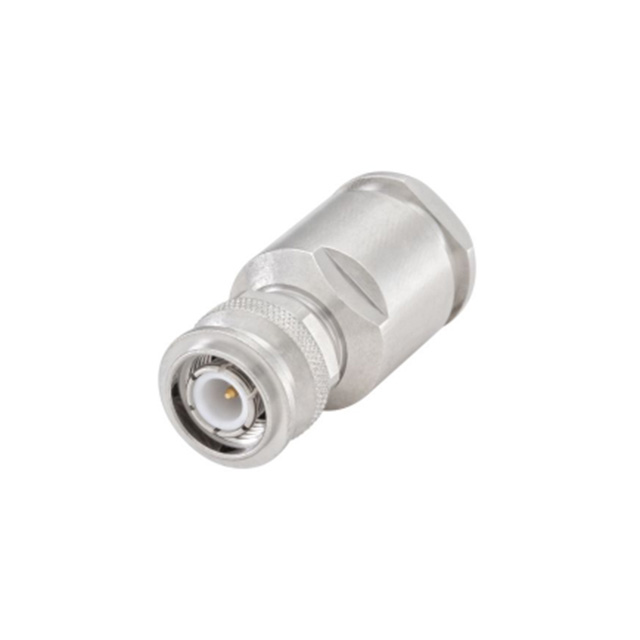

CONN TNC PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN TNC PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	56S105-015N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	214, RG-213
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Washer, 1 Gasket, 1 Connector, 1 Contact, 1 Clamp
Ingress Protection	IP63 - Dust Tight, Water Resistant
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

Part	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Includes	Center Contact Plating	Cable Group	Number of Ports	Connector Type	Contact Termination	Mating Cycles	Center Contact Material	Body Material	Connector Style	Mounting Type	Shield Termination	Impedance	Ingress Protection	Voltage Rating	Housing Color	Body Finish
Rosenberger 56S105-015N5	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	10 GHz	1 Clamp 1 Connector 1 Contact 1 Gasket 1 Nut 1 Washer	Gold	214 RG-213	1	Male Pin Plug	Solder	500	Brass	Brass	TNC	Free Hanging (In-Line)	Clamp	50 Ohms	IP63 - Dust Tight Water Resistant	500 V	Silver	White Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
