C1642A.41.10
ActivePrysmian Group

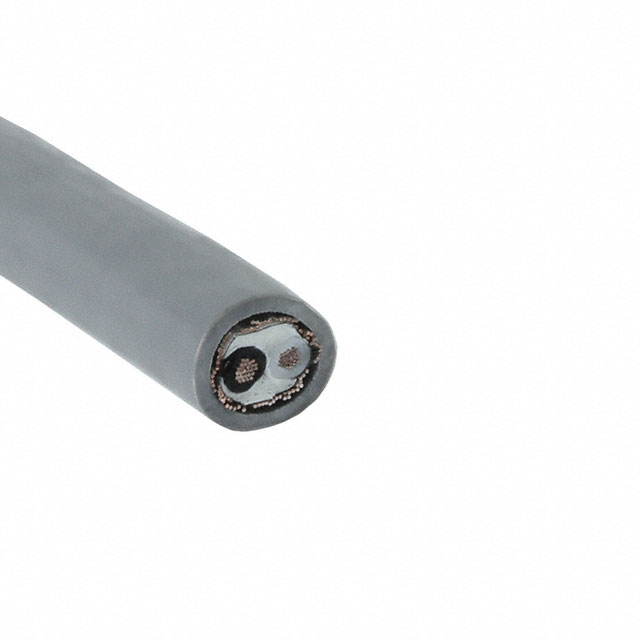

CABLE 2COND 20AWG GRAY SHLD 500'
Deep-Dive with AI
Search across all available documentation for this part.
C1642A.41.10
ActivePrysmian Group
CABLE 2COND 20AWG GRAY SHLD 500'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C1642A.41.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Polyethylene (PE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 34 AWG, 26 |
| Jacket (Insulation) Diameter [diameter] | 5.74 mm |
| Jacket (Insulation) Diameter [diameter] | 0.226 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.737 mm |
| Jacket (Insulation) Thickness | 0.029 in |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m, 15.24 m |
| Length [x] | 500 ', 50 ft |
| Length [x] | 152.4 m |
| Number of Conductors | 2 |
| Shield Coverage | 80 % |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 84.86 | |
| 1 | $ 520.12 | |||
| 5 | $ 462.33 | |||
| 5 | $ 69.43 | |||
| 10 | $ 418.99 | |||
| 10 | $ 54.00 | |||
| Spool | 1000 | $ 0.77 | ||
| 2000 | $ 0.73 | |||
| 3000 | $ 0.71 | |||
| 5000 | $ 0.68 | |||
| 7000 | $ 0.66 | |||
| 10000 | $ 0.65 | |||
Description
General part information
C1642 Series
2 Conductor Multi-Conductor Cable Gray 20 AWG Braid 500.0' (152.4m)
Documents
Technical documentation and resources
No documents available
