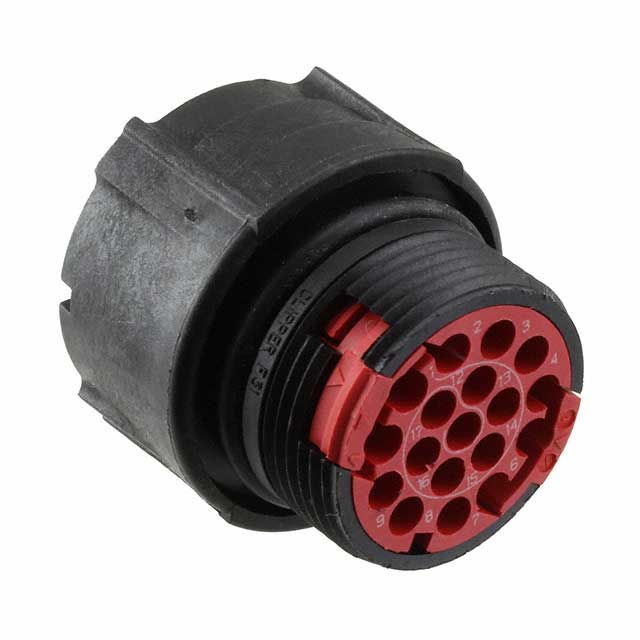

CL1F3101

Active

Souriau-Sunbank by Eaton

CONN PLG HSG FMALE 18POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CL1F3101

Active

Souriau-Sunbank by Eaton

CONN PLG HSG FMALE 18POS INLINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CL1F3101

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp and Solder Cup
Fastening Type	Twist Latch
Features	Coupling Nut
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	18
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Thermoplastic, Halogen Free
Shell Size - Insert	3-1
Shielding	Unshielded
Type	For Female Sockets

CL1F3 Series

Part	Number of Positions	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Fastening Type	Features	Shell Size - Insert	Type	Orientation	Note	Mounting Type	Contact Shape	Contact Type	Shielding	Insert Material	Ingress Protection	Connector Type	Housing Color	Contact Size
Souriau-Sunbank by Eaton CL1F3103	18	UL94 V-0	125 °C	-40 °C	Thermoplastic Halogen Free	Twist Latch	Coupling Nut	3-1	For Female Sockets	Keyed	Contacts Not Included	Free Hanging (In-Line)	Circular	Crimp and Solder Cup	Unshielded	Thermoplastic	IP68 - Dust Tight Waterproof	Plug Housing	Black	16
Souriau-Sunbank by Eaton CL1F3201	31	UL94 V-0	125 °C	-40 °C	Thermoplastic Halogen Free	Twist Latch	Coupling Nut	3-2	For Female Sockets	Keyed	Contacts Not Included	Free Hanging (In-Line)	Circular	Crimp and Solder Cup	Unshielded	Thermoplastic	IP67 - Dust Tight Waterproof	Plug Housing	Black	20
Souriau-Sunbank by Eaton CL1F3100	18	UL94 V-0	125 °C	-40 °C	Thermoplastic Halogen Free	Twist Latch	Coupling Nut	3-1	For Female Sockets	Keyed	Contacts Not Included	Free Hanging (In-Line)	Circular	Crimp and Solder Cup	Unshielded	Thermoplastic	IP40	Plug Housing	Black	16
Souriau-Sunbank by Eaton CL1F3200	31	UL94 V-0	125 °C	-40 °C	Thermoplastic Halogen Free	Twist Latch	Coupling Nut	3-2	For Female Sockets	Keyed	Contacts Not Included	Free Hanging (In-Line)	Circular	Crimp and Solder Cup	Unshielded	Thermoplastic	IP40	Plug Housing	Black	20
Souriau-Sunbank by Eaton CL1F3101	18	UL94 V-0	125 °C	-40 °C	Thermoplastic Halogen Free	Twist Latch	Coupling Nut	3-1	For Female Sockets	Keyed	Contacts Not Included	Free Hanging (In-Line)	Circular	Crimp and Solder Cup	Unshielded	Thermoplastic	IP67 - Dust Tight Waterproof	Plug Housing	Black	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.38
		10	$ 13.40
		25	$ 12.29

Description

General part information

CL1F3 Series

18 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
