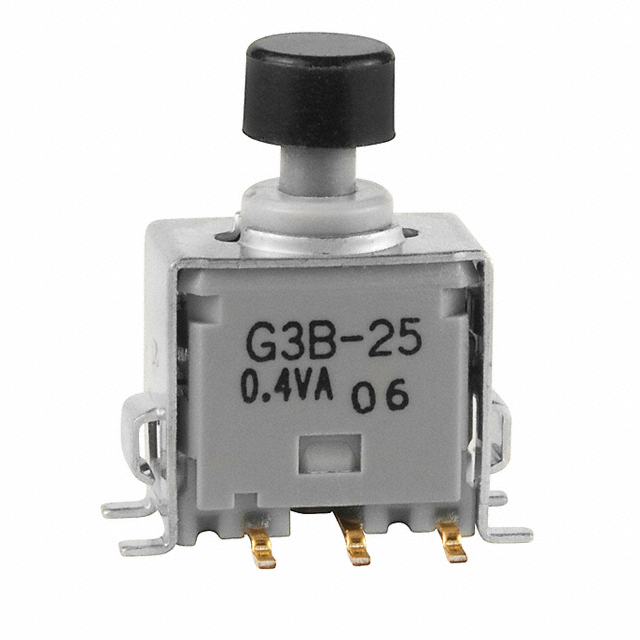

G3B25AB-S-YA

Active

NKK Switches

PUSHBUTTON SWITCH, ULTRA-MINIATURE, G3B SERIES, DPDT, ON-(ON), ROUND, BLACK

Search across all available documentation for this part.

Active

NKK Switches

PUSHBUTTON SWITCH, ULTRA-MINIATURE, G3B SERIES, DPDT, ON-(ON), ROUND, BLACK

Technical Specifications

Parameters and characteristics for this part

Part	Features	Actuator Marking	Actuator Type	Mounting Type	Switch Function	Termination Style	Voltage Rating - AC	Type	Current Rating (Amps)	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Voltage Rating - DC	Color - Actuator/Cap
NKK Switches G3B25AB-XB	Process Sealed	No Marking	Button Round	Surface Mount	On-Mom	Gull Wing	28 V	Standard	0.4 VA	50000 Cycles	-30 ░C	85 °C	DPDT	28 V	White
NKK Switches G3B25AB-S	Process Sealed	No Marking	Round Plunger	Surface Mount	On-Mom	Gull Wing	28 V	Standard	0.4 VA	50000 Cycles	-30 ░C	85 °C	DPDT	28 V
NKK Switches G3B25AB-XA	Process Sealed	No Marking	Button Round	Surface Mount	On-Mom	Gull Wing	28 V	Standard	0.4 VA	50000 Cycles	-30 ░C	85 °C	DPDT	28 V	Black
NKK Switches G3B25AB-S-XC	Process Sealed	No Marking	Button Round	Surface Mount	On-Mom	Gull Wing	28 V	Standard	0.4 VA	50000 Cycles	-30 ░C	85 °C	DPDT	28 V	Red
NKK Switches G3B25AB-XC	Process Sealed	No Marking	Button Round	Surface Mount	On-Mom	Gull Wing	28 V	Standard	0.4 VA	50000 Cycles	-30 ░C	85 °C	DPDT	28 V	Red
NKK Switches G3B25AB-S-YA	Process Sealed	No Marking	Button Round	Surface Mount	On-Mom	Gull Wing	28 V	Standard	0.4 VA	50000 Cycles	-30 ░C	85 °C	DPDT	28 V	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Standard Surface Mount
