A-2PA-081-01KB2

Active

Amphenol RF

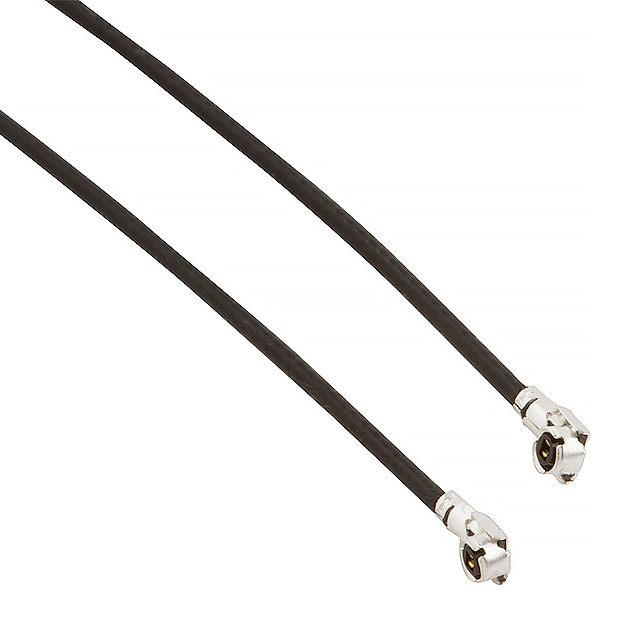

AMMC RIGHT ANGLE PLUG TO AMMC RIGHT ANGLE PLUG 0.81 MM 50 OHM 1 M (39.37 INCHES)

Deep-Dive with AI

Search across all available documentation for this part.

A-2PA-081-01KB2

Active

Amphenol RF

AMMC RIGHT ANGLE PLUG TO AMMC RIGHT ANGLE PLUG 0.81 MM 50 OHM 1 M (39.37 INCHES)

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A-2PA-081-01KB2

1st Connector	AMMC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	AMMC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	Coaxial Cable
Cable Type [diameter]	0.81 mm
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	AMMC to AMMC

A-2PA-081 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Overall Impedance	2nd Connector Mounting Type	Frequency - Max [Max]	1st Connector	Features	Length [x]	Length [x]	Style	2nd Connector	1st Connector Mounting Type	Color	1st Contact Gender	Cable Type	Cable Type [diameter]	2nd Contact Gender	Length	Length	Length
Amphenol RF A-2PA-081-150B2	90 °C	-40 °C	50 Ohms	Free Hanging (In-Line)	6000 MHz	AMMC Plug Right Angle	Shielded	150 mm	5.906 "	AMMC to AMMC	AMMC Plug Right Angle	Free Hanging (In-Line)	Black	Female	Coaxial Cable	0.81 mm	Female
Amphenol RF A-2PA-081-300B2	90 °C	-40 °C	50 Ohms	Free Hanging (In-Line)	6000 MHz	AMMC Plug Right Angle	Shielded	300 mm	11.811 in	AMMC to AMMC	AMMC Plug Right Angle	Free Hanging (In-Line)	Black	Female	Coaxial Cable	0.81 mm	Female
Amphenol RF A-2PA-081-200B2	90 °C	-40 °C	50 Ohms	Free Hanging (In-Line)	6000 MHz	AMMC Plug Right Angle	Shielded			AMMC to AMMC	AMMC Plug Right Angle	Free Hanging (In-Line)	Black	Female	Coaxial Cable	0.81 mm	Female	7.874 in	200 mm
Amphenol RF A-2PA-081-250B2	90 °C	-40 °C	50 Ohms	Free Hanging (In-Line)	6000 MHz	AMMC Plug Right Angle	Shielded	250 mm	9.843 "	AMMC to AMMC	AMMC Plug Right Angle	Free Hanging (In-Line)	Black	Female	Coaxial Cable	0.81 mm	Female
Amphenol RF A-2PA-081-500B2	90 °C	-40 °C	50 Ohms	Free Hanging (In-Line)	6000 MHz	AMMC Plug Right Angle	Shielded			AMMC to AMMC	AMMC Plug Right Angle	Free Hanging (In-Line)	Black	Female	Coaxial Cable	0.81 mm	Female	19.69 "	50 cm
Amphenol RF A-2PA-081-050B2	90 °C	-40 °C	50 Ohms	Free Hanging (In-Line)	6000 MHz	AMMC Plug Right Angle	Shielded	50 mm	1.969 in	AMMC to AMMC	AMMC Plug Right Angle	Free Hanging (In-Line)	Black	Female	Coaxial Cable	0.81 mm	Female
Amphenol RF A-2PA-081-01KB2	90 °C	-40 °C	50 Ohms	Free Hanging (In-Line)	6000 MHz	AMMC Plug Right Angle	Shielded			AMMC to AMMC	AMMC Plug Right Angle	Free Hanging (In-Line)	Black	Female	Coaxial Cable	0.81 mm	Female	39.4 in	1 m	3.3 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 8.07
		10	$ 7.30
		25	$ 6.89
		50	$ 6.73
		100	$ 6.39
		300	$ 5.72
		500	$ 5.38
		1000	$ 4.71
Newark	Each	100	$ 7.54
		250	$ 7.32

Description

General part information

A-2PA-081 Series

Cable Assembly Coaxial AMMC to AMMC 0.81mm OD Coaxial Cable 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
