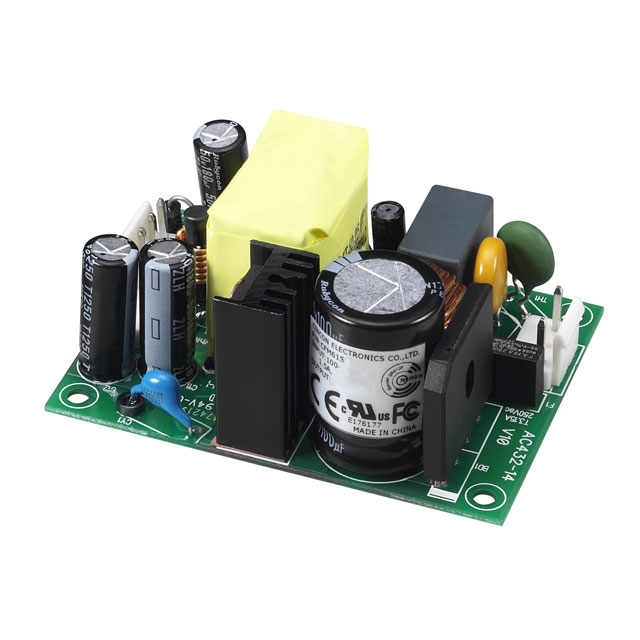

CFM61S480-T

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 48V 60W

Search across all available documentation for this part.

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 48V 60W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output 1	Approval Agency	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Type	Features	Efficiency
Cincon Electronics Co. LTD CFM61S150-T	15 V	CE cURus FCC NEMKO	3000 V	50.8 mm	1.29 in	32.8 mm	2.7 in	2 in	68.6 mm	1	70 °C	-30 °C	Chassis Mount	4 A	90 VAC	264 VAC	ITE (Commercial)	Open Frame	Universal Input	88 %
Cincon Electronics Co. LTD CFM61S360-T	36 V	CE cURus FCC NEMKO	3000 V	50.8 mm	1.29 in	32.8 mm	2.7 in	2 in	68.6 mm	1	70 °C	-30 °C	Chassis Mount	1.67 A	90 VAC	264 VAC	ITE (Commercial)	Open Frame	Universal Input	89 %
Cincon Electronics Co. LTD CFM61S480-T	48 V	CE cURus FCC NEMKO	3000 V	50.8 mm	1.29 in	32.8 mm	2.7 in	2 in	68.6 mm	1	70 °C	-30 °C	Chassis Mount	1.25 A	90 VAC	264 VAC	ITE (Commercial)	Open Frame	Universal Input	90 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 23.54

General part information

Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
