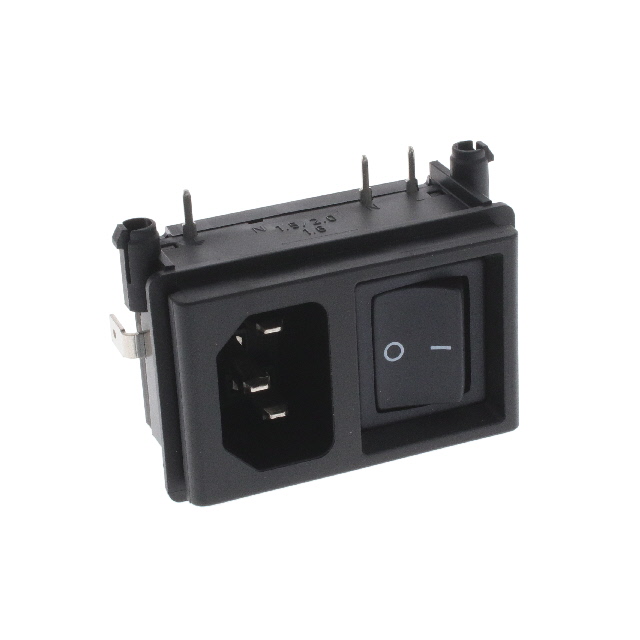

KP01.1112.11
ActiveSCHURTER Inc.
POWER ENTRY MODULE UNFILTERED M 3 POS 250VAC 10A SWITCH RA 1 PORT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KP01.1112.11 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | VDE, CCC, cURus |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A |
| Features | Terminating Cover, Board Lock |
| Filter Type | Unfiltered - Commercial |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount, Snap-In |
| Panel Cutout Dimensions | Variable Size |
| Panel Thickness | 2 mm |
| Panel Thickness | 0.079 in |
| Switch Features | Switch On-Off |
| Termination | Solder |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.27 | |
| 50 | $ 11.10 | |||
| 100 | $ 10.48 | |||
Description
General part information
KP01.1112 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In; Through Hole, Right Angle
