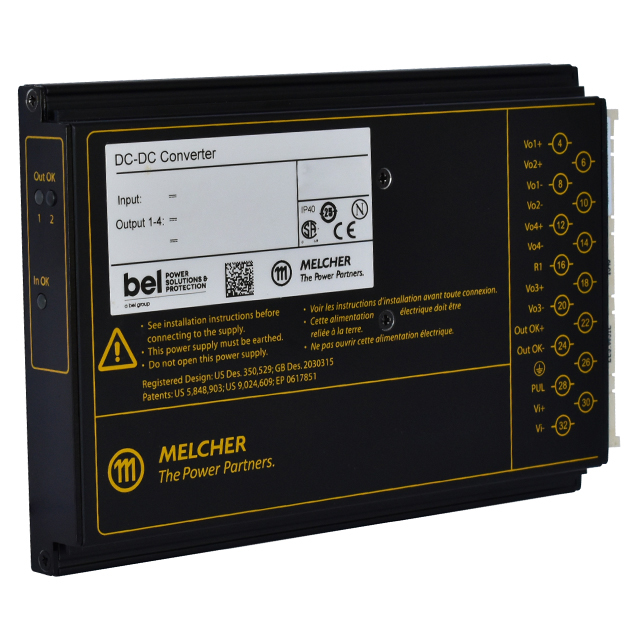

HP1001-9RTG
ActiveEOS Power India Private Ltd
DC/DC CONVERTER 5.1V 122W
Deep-Dive with AI
Search across all available documentation for this part.
HP1001-9RTG
ActiveEOS Power India Private Ltd
DC/DC CONVERTER 5.1V 122W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HP1001-9RTG |
|---|---|
| Applications | Railway, ITE (Commercial) |
| Approval Agency | cCSAus, CE, NEMKO |
| Current - Output (Max) [Max] | 18 A |
| Efficiency | 90.5 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 122 W |
| Size / Dimension [x] | 6.47 in |
| Size / Dimension [x] | 164 mm |
| Size / Dimension [y] | 111 mm |
| Size / Dimension [y] | 4.37 " |
| Size / Dimension [z] | 20.32 mm |
| Size / Dimension [z] | 0.8 " |
| Type | Conformal Coated, Enclosed |
| Voltage - Input (Max) [Max] | 154 V |
| Voltage - Input (Min) [Min] | 12.5 V |
| Voltage - Output 1 | 5.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 12 | $ 700.08 | |
Description
General part information
HP1001 Series
Enclosed, Conformal Coated DC DC Converter 1 Output 5.1V 18A 154V Input
Documents
Technical documentation and resources
No documents available
