901481110

Active

Molex

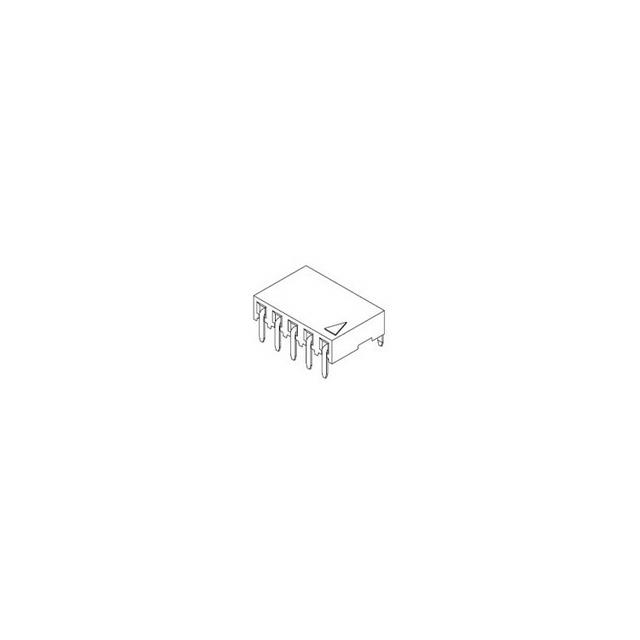

2.54MM PITCH C-GRID III PC BOARD CONNECTOR, SINGLE ROW, RIGHT-ANGLE, 1.00ΜM TIN (SN), 10 CIRCUITS

Search across all available documentation for this part.

Active

Molex

2.54MM PITCH C-GRID III PC BOARD CONNECTOR, SINGLE ROW, RIGHT-ANGLE, 1.00ΜM TIN (SN), 10 CIRCUITS

Technical Specifications

Parameters and characteristics for this part

Specification	901481110

null

2.54mm Pitch C-Grid III PC Board Connector, Single Row, Right-Angle, 0.80µm Gold (Au) Selective, 4 Circuits

Part	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Connector Type	Applications	Insulation Material	Contact Type	Number of Positions Loaded	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Number of Rows	Insulation Height	Insulation Height	Fastening Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Material	Termination	Voltage Rating	Insulation Color
Molex 0901481110	3 A	105 ░C	-55 °C	Tin	Receptacle	Automotive General Purpose Lighting Medical Telecommunications	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Female Socket	All	Through Hole Right Angle	1.02 Ám	40 Áin	0.114 in	2.9 mm	1	0.13 in	3.3 mm	Push-Pull	10	40 µin	1.02 µm	Square	0.1 in	2.54 mm	Phosphor Bronze	Solder	350 V	Black
Molex 901481302
Molex 901481110
Molex 0901481104	3 A	105 ░C	-55 °C	Tin	Receptacle	Automotive General Purpose Lighting Medical Telecommunications	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Female Socket	All	Through Hole Right Angle	1.02 Ám	40 Áin	0.114 in	2.9 mm	1	0.13 in	3.3 mm	Push-Pull	4	40 µin	1.02 µm	Square	0.1 in	2.54 mm	Phosphor Bronze	Solder	350 V	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.54mm Pitch C-Grid III PC Board Connector, Single Row, Right-Angle, 0.80µm Gold (Au) Selective, 4 Circuits
