C0742A.41.10

Active

Prysmian Group

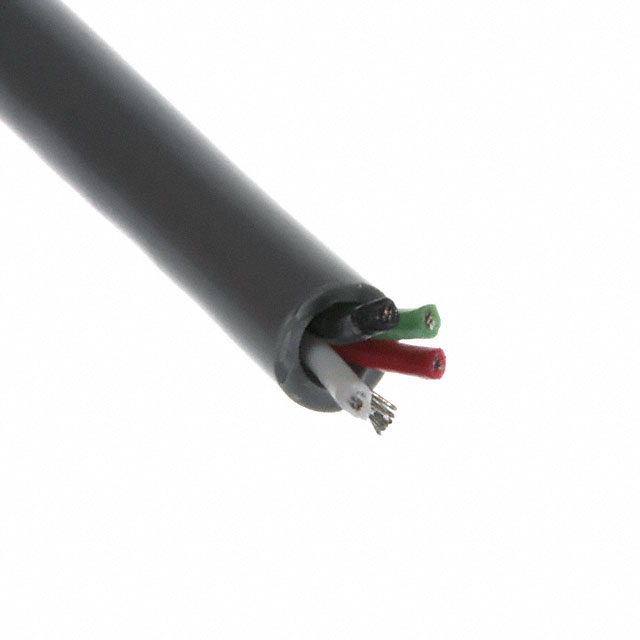

CABLE 4COND 24AWG GRAY SHLD

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 4COND 24AWG GRAY SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	C0742A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	4.45 mm
Jacket (Insulation) Diameter [diameter]	0.175 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Shield Type	Shield Material	Length [x]	Length [x]	Conductor Material	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Jacket Color	Voltage	Wire Gauge	Conductor Insulation	Shield Coverage	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Length	Length
Prysmian Group C0742A.18.10	Foil	Flexfoil®	500 '	152.4 m	Copper Tinned	Drain Wire	4.45 mm	0.175 in	Multi-Conductor	Gray	300 V	24 AWG	Poly-Vinyl Chloride (PVC)	100 %	Poly-Vinyl Chloride (PVC)	32 AWG	7	Computer	-20 C	80 C	4
Prysmian Group C0742A.41.10	Foil	Flexfoil®			Copper Tinned	Drain Wire	4.45 mm	0.175 in	Multi-Conductor	Gray	300 V	24 AWG	Poly-Vinyl Chloride (PVC)	100 %	Poly-Vinyl Chloride (PVC)	32 AWG	7	Computer	-20 C	80 C	4	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Gray 24 AWG Foil 1000.0' (304.8m)

Technical documentation and resources

No documents available
