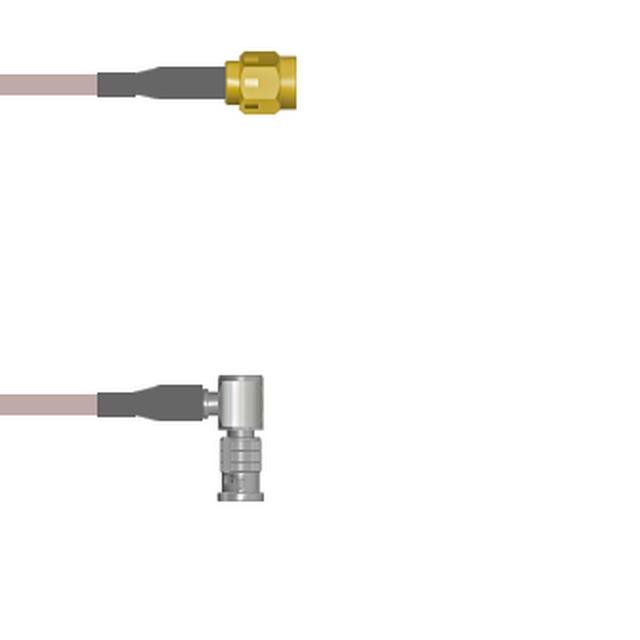

Q-3B05G0005072I

Active

Amphenol Custom Cable

COAX CBL HD-BNC TO SMA 6'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL HD-BNC TO SMA 6'

Technical Specifications

Parameters and characteristics for this part

Part	Color	Length	Length	Length	Frequency - Max [Max]	2nd Connector Mounting Type	1st Contact Gender	2nd Contact Gender	Overall Impedance	1st Connector	2nd Connector	Features	Cable Impedance	Style	1st Connector Mounting Type	Cable Type	Connector Impedance
Amphenol Custom Cable Q-3B05G00051.5M	Copper	59.1 in	4.9 ft	1.5 m	3 GHz	Free Hanging (In-Line)	Male	Male	50 Ohms	HD-BNC Plug Right Angle	SMA Plug	Shielded	50 Ohms	HD-BNC to SMA	Free Hanging (In-Line)	RG-316	50 Ohms
Amphenol Custom Cable Q-3B05G0005072I	Copper	72 in	6 ft	1.8 m	3 GHz	Free Hanging (In-Line)	Male	Male	50 Ohms	HD-BNC Plug Right Angle	SMA Plug	Shielded	50 Ohms	HD-BNC to SMA	Free Hanging (In-Line)	RG-316	50 Ohms
Amphenol Custom Cable Q-3B05G0005048I	Copper	48 in	4 ft	1200 mm	3 GHz	Free Hanging (In-Line)	Male	Male	50 Ohms	HD-BNC Plug Right Angle	SMA Plug	Shielded	50 Ohms	HD-BNC to SMA	Free Hanging (In-Line)	RG-316	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial HD-BNC to SMA RG-316 72.0" (1.8m) 6.0'

Technical documentation and resources

No documents available
