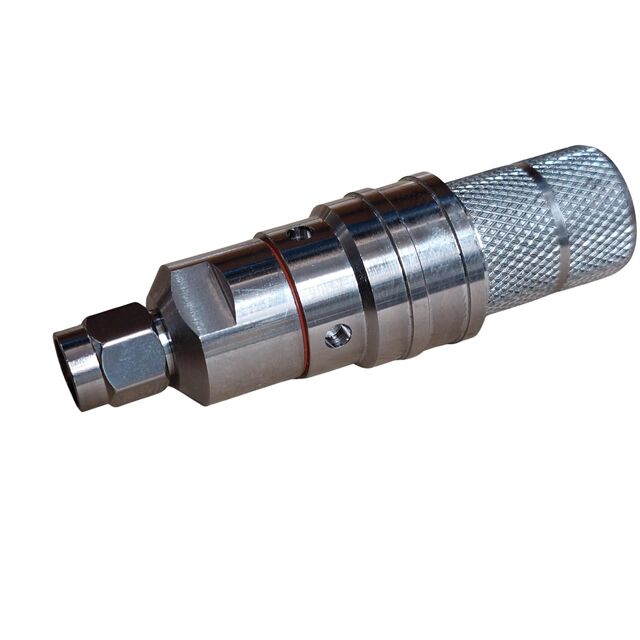

EZ-600-SM-X

Active

Amphenol Times Microwave Systems

SMA-MALE (PLUG) CRIMP CONNECTOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EZ-600-SM-X

Active

Amphenol Times Microwave Systems

SMA-MALE (PLUG) CRIMP CONNECTOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EZ-600-SM-X

Body Finish	Tin
Body Material	Brass
Cable Group	LMR-600
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Push On
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	8 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

EZ-600 Series

Part	Contact Termination	Center Contact Plating	Housing Color	Body Finish	Cable Group	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Dielectric Material	Voltage Rating	Body Material	Number of Ports	Shield Termination	Impedance	Mounting Type	Connector Style	Center Contact Material	Frequency - Max [Max]	Ingress Protection	Insertion Loss	Fastening Type	Mating Cycles
Amphenol Times Microwave Systems EZ-600-TM-RP	Push On	Gold	Silver	White Bronze	LMR-600	85 °C	-40 °C	Female Socket Plug	Polytetrafluoroethylene (PTFE)	500 V	Brass	1	Crimp	50 Ohms	Free Hanging (In-Line)	RP-TNC	Beryllium Copper	3 GHz
Amphenol Times Microwave Systems EZ-600-NM-75	Push On	Gold	Silver	Nickel	LMR-600-75	165 °C	-65 ░C	Male Pin Plug	Polytetrafluoroethylene (PTFE)		Brass	1	Crimp	75 Ohms	Free Hanging (In-Line)	N Type	Beryllium Copper	2 GHz
Amphenol Times Microwave Systems EZ-600-716M-X	Push On	Gold	Silver	White Bronze	LMR-600	155 °C	-55 °C	Male Pin Plug	Polytetrafluoroethylene (PTFE)		Brass	1	Crimp	50 Ohms	Free Hanging (In-Line)	7/16 DIN	Beryllium Copper	3 GHz	IP68 - Dust Tight Waterproof	0.05 dB
Amphenol Times Microwave Systems EZ-600-QNF-X	Push On	Gold	Silver	Tin	LMR-600	125 °C	-40 °C	Female Socket Jack	Polytetrafluoroethylene (PTFE)		Brass	1	Crimp	50 Ohms	Free Hanging (In-Line)	QN	Beryllium Copper	6000 MHz			Snap-On
Amphenol Times Microwave Systems EZ-600-4310M-X	Push On	Gold	Silver	Tin	LMR-600	125 °C	-40 °C	Male Pin Plug	Polytetrafluoroethylene (PTFE)		Brass	1	Crimp	50 Ohms	Free Hanging (In-Line)	4.3/10	Beryllium Copper	6000 MHz
Amphenol Times Microwave Systems EZ-600-TF-RP	Push On	Gold	Silver	White Bronze	LMR-600	85 °C	-40 °C	Jack Male Pin	Polytetrafluoroethylene (PTFE)	500 V	Brass	1	Crimp	50 Ohms	Free Hanging (In-Line)	RP-TNC	Beryllium Copper	3 GHz
Amphenol Times Microwave Systems EZ-600-TF-X
Amphenol Times Microwave Systems EZ-600-4310M-RA-X	Push On	Gold	Silver	Tin	LMR-600	125 °C	-40 °C	Male Pin Plug	Polytetrafluoroethylene (PTFE)		Brass	1	Crimp	50 Ohms	Free Hanging (In-Line) Right Angle	4.3/10	Beryllium Copper	6000 MHz
Amphenol Times Microwave Systems EZ-600-SM-X	Push On	Gold	Silver	Tin	LMR-600	125 °C	-40 °C	Male Pin Plug	Polytetrafluoroethylene (PTFE)		Brass	1	Crimp	50 Ohms	Free Hanging (In-Line)	SMA	Beryllium Copper	8 GHz				500
Amphenol Times Microwave Systems EZ-600-QNM-RA-X	Push On	Gold	Silver	Tin	LMR-600	125 °C	-40 °C	Male Pin Plug	Polytetrafluoroethylene (PTFE)		Brass	1	Crimp	50 Ohms	Free Hanging (In-Line) Right Angle	QN	Beryllium Copper	6000 MHz			Snap-On

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 27.52

Description

General part information

EZ-600 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Push On

Documents

Technical documentation and resources
