181-22024

Active

HELLERMANNTYTON

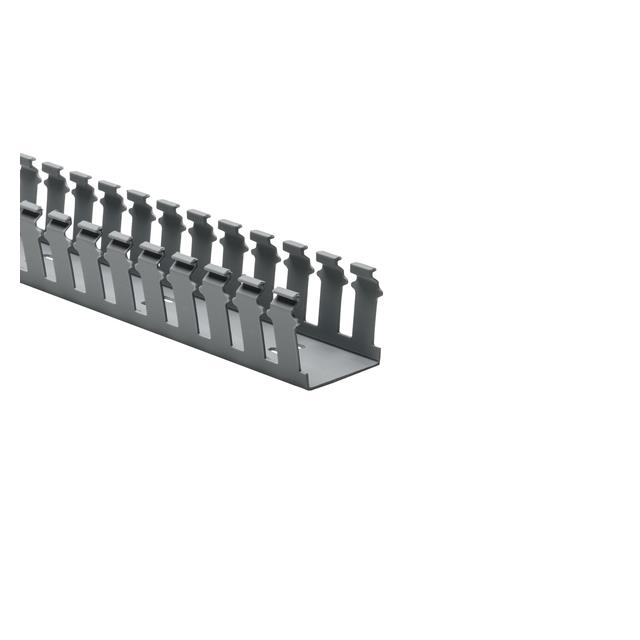

SLOTTED WALL WIRING DUCT, 2" X 2", NON-ADHESIVE, PVC, GRAY, 120FT/CARTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMaterials Guide for Bundling & Securing Datasheet

181-22024

Active

HELLERMANNTYTON

SLOTTED WALL WIRING DUCT, 2" X 2", NON-ADHESIVE, PVC, GRAY, 120FT/CARTON

Deep-Dive with AI

DocumentsMaterials Guide for Bundling & Securing Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	181-22024

Color	Gray
Features	Pre-Punched Mounting Holes, Self Extinguishing
Height [z]	51 mm
Height [z]	2.008 in
Length	6 ft
Length	1.83 m
Material	Poly-Vinyl Chloride (PVC)
Mounting Type	Screw
Width [x]	2 in
Width [x]	50.8 mm
Wire Duct Type	Slotted (Raceway), Base

181-22 Series

IC & Component Sockets .100" Double Row Screw Machine Socket Strip

Part	Material	Mounting Type	Length	Length	Width [x]	Width [x]	Height [z]	Height [z]	Wire Duct Type	Features	Color
HELLERMANNTYTON 181-22024	Poly-Vinyl Chloride (PVC)	Screw	6 ft	1.83 m	2 in	50.8 mm	51 mm	2.008 in	Base Slotted (Raceway)	Pre-Punched Mounting Holes Self Extinguishing	Gray
HELLERMANNTYTON 181-22008	Poly-Vinyl Chloride (PVC)	Screw	6 ft	1.83 m	2 in	50.8 mm	51 mm	2.008 in		Pre-Punched Mounting Holes Self Extinguishing	Gray
HELLERMANNTYTON 181-22017	Poly-Vinyl Chloride (PVC)	Adhesive Screw	6 ft	1.83 m	2 in	50.8 mm	51 mm	2.008 in		Pre-Punched Mounting Holes Self Extinguishing	White
HELLERMANNTYTON 181-22011	Poly-Vinyl Chloride (PVC)	Screw	6 ft	1.83 m	2 in	50.8 mm	51 mm	2.008 in		Pre-Punched Mounting Holes Self Extinguishing	White
HELLERMANNTYTON 181-22021	Poly-Vinyl Chloride (PVC)	Screw	6 ft	1.83 m	2 in	50.8 mm	51 mm	2.008 in	Base Slotted (Raceway)	Pre-Punched Mounting Holes Self Extinguishing	Blue
HELLERMANNTYTON 181-22031	Poly-Vinyl Chloride (PVC)	Adhesive Screw	6 ft	1.83 m	2 in	50.8 mm	51 mm	2.008 in	Base Slotted (Raceway)	Pre-Punched Mounting Holes Self Extinguishing	Gray
HELLERMANNTYTON 181-22034	Poly-Vinyl Chloride (PVC)	Adhesive Screw	6 ft	1.83 m	2 in	50.8 mm	51 mm	2.008 in	Base Slotted (Raceway)	Pre-Punched Mounting Holes Self Extinguishing	White
HELLERMANNTYTON 181-22020	Poly-Vinyl Chloride (PVC)	Screw	6 ft	1.83 m	2 in	50.8 mm	51 mm	2.008 in	Base Slotted (Raceway)	Pre-Punched Mounting Holes Self Extinguishing	Black
HELLERMANNTYTON 181-22013	Poly-Vinyl Chloride (PVC)	Screw	6 ft	1.83 m	2 in	50.8 mm	51 mm	2.008 in		Pre-Punched Mounting Holes Self Extinguishing	White
HELLERMANNTYTON 181-22005	Poly-Vinyl Chloride (PVC)	Screw	6 ft	1.83 m	2 in	50.8 mm	51 mm	2.008 in		Pre-Punched Mounting Holes Self Extinguishing	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 38.79
		10	$ 33.97
		25	$ 32.50
		50	$ 31.45
		100	$ 30.40
		250	$ 28.72
Newark	1 Foot	100	$ 4.39
		250	$ 4.02
		500	$ 3.74
		1000	$ 3.51
