FH72-11S-0.3SHW

Active

Hirose Electric USA, Inc.

CONN, FPC, R/A, 11POS, 2ROW, 0.3MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

FH72-11S-0.3SHW

Active

Hirose Electric USA, Inc.

CONN, FPC, R/A, 11POS, 2ROW, 0.3MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FH72-11S-0.3SHW

Actuator Color	Black
Actuator Material	Nylon, Polyamide (PA)
Cable End Type	Notched
Connector/Contact Type	Contacts, Top
Contact Finish	Gold
Contact Finish Thickness	1.25 Áin
Contact Finish Thickness	0.03 Ám
Contact Material	Copper Alloy
Current Rating (Amps)	0.2 A
FFC, FCB Thickness	0.2 mm
Flat Flex Type	FPC
Height Above Board	0.88 mm
Height Above Board	0.035 "
Housing Color	Beige
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	10
Mounting Type	Surface Mount, Right Angle
Number of Positions	11
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.012 in
Pitch [x]	0.3 mm
Termination	Solder
Voltage Rating	30 VDC

FH72 Series

Part	Contact Material	Housing Color	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mating Cycles	Connector/Contact Type	Termination	Pitch [x]	Pitch [x]	Contact Finish	FFC, FCB Thickness	Actuator Color	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Housing Material	Material Flammability Rating	Cable End Type	Mounting Type	Height Above Board	Height Above Board	Flat Flex Type	Locking Feature	Current Rating (Amps)	Actuator Material
Hirose Electric USA, Inc. FH72-11S-0.3SHW	Copper Alloy	Beige	11	1.25 Áin	0.03 Ám	10	Contacts Top	Solder	0.012 in	0.3 mm	Gold	0.2 mm	Black	85 °C	-55 °C	30 VDC	Liquid Crystal Polymer (LCP)	UL94 V-0	Notched	Surface Mount Right Angle	0.88 mm	0.035 "	FPC	Flip Lock	0.2 A	Nylon Polyamide (PA)
Hirose Electric USA, Inc. FH72-21S-0.3SHW	Copper Alloy	Beige	21	1.25 Áin	0.03 Ám	10	Contacts Top	Solder	0.012 in	0.3 mm	Gold	0.2 mm	Black	85 °C	-55 °C	30 VDC	Liquid Crystal Polymer (LCP)	UL94 V-0	Notched	Surface Mount Right Angle	0.88 mm	0.035 "	FPC	Flip Lock	0.2 A	Nylon Polyamide (PA)
Hirose Electric USA, Inc. FH72-31S-0.3SHW	Copper Alloy	Beige	31	1.25 Áin	0.03 Ám	10	Contacts Top	Solder	0.012 in	0.3 mm	Gold	0.2 mm	Black	85 °C	-55 °C	30 VDC	Liquid Crystal Polymer (LCP)	UL94 V-0	Notched	Surface Mount Right Angle	0.88 mm	0.035 "	FPC	Flip Lock	0.2 A	Nylon Polyamide (PA)
Hirose Electric USA, Inc. FH72-21S-0.3SHW(99)	Copper Alloy	Beige	21	1.25 Áin	0.03 Ám	10	Contacts Top	Solder	0.012 in	0.3 mm	Gold	0.2 mm	Black	85 °C	-55 °C	30 VDC	Liquid Crystal Polymer (LCP)	UL94 V-0	Notched	Surface Mount Right Angle	0.88 mm	0.035 "	FPC	Flip Lock	0.2 A	Nylon Polyamide (PA)
Hirose Electric USA, Inc. FH72-11S-0.3SHW(99)	Copper Alloy	Beige	11	1.25 Áin	0.03 Ám	10	Contacts Top	Solder	0.012 in	0.3 mm	Gold	0.2 mm	Black	85 °C	-55 °C	30 VDC	Liquid Crystal Polymer (LCP)	UL94 V-0	Notched	Surface Mount Right Angle	0.88 mm	0.035 "	FPC	Flip Lock	0.2 A	Nylon Polyamide (PA)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.32
		10	$ 1.11
		25	$ 1.07
		50	$ 1.05
		100	$ 1.00
		250	$ 0.91
		500	$ 0.82
		1000	$ 0.73
		2500	$ 0.66
	Tape & Reel (TR)	6000	$ 0.64
		12000	$ 0.59
Newark	Each (Supplied on Full Reel)	6000	$ 1.48

Description

General part information

FH72 Series

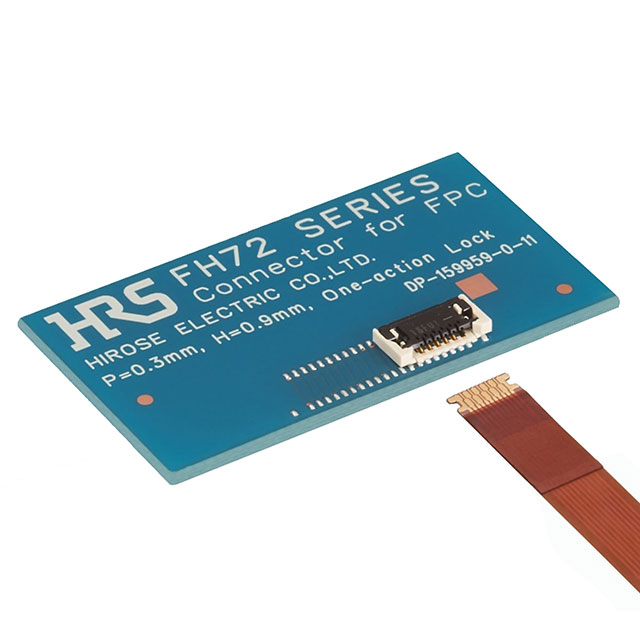

11 Position FPC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle
