SF4532-6009

Active

Amphenol SV Microwave

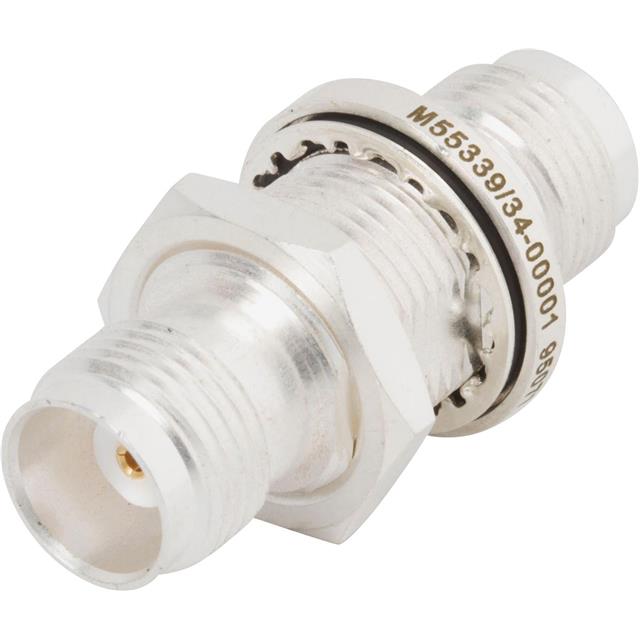

CONN ADAPT JACK-JACK TNC 50 OHM

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN ADAPT JACK-JACK TNC 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	SF4532-6009

Adapter Series	TNC to TNC
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	TNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, TNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Dielectric Material	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Mounting Feature	Convert To (Adapter End)	Body Material	Center Contact Material	Center Gender	Adapter Series	Frequency - Max [Max]	Convert From (Adapter End)	Style	Adapter Type	Conversion Type	Center Contact Plating	Includes
Amphenol SV Microwave SF4532-6009	Polytetrafluoroethylene (PTFE)	500	-65 ░C	165 °C	50 Ohms	Bulkhead	Female Socket TNC Jack	Stainless Steel	Beryllium Copper	Female to Female	TNC to TNC	18 GHz	TNC Jack Female Socket	Straight	Jack to Jack	Same Series	Gold	1 Connector 1 Lockwasher 1 Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 109.19

General part information

Adapter Coaxial Connector TNC Jack, Female Socket To TNC Jack, Female Socket 50 Ohms
