306-034-500-101

Active

EDAC Inc.

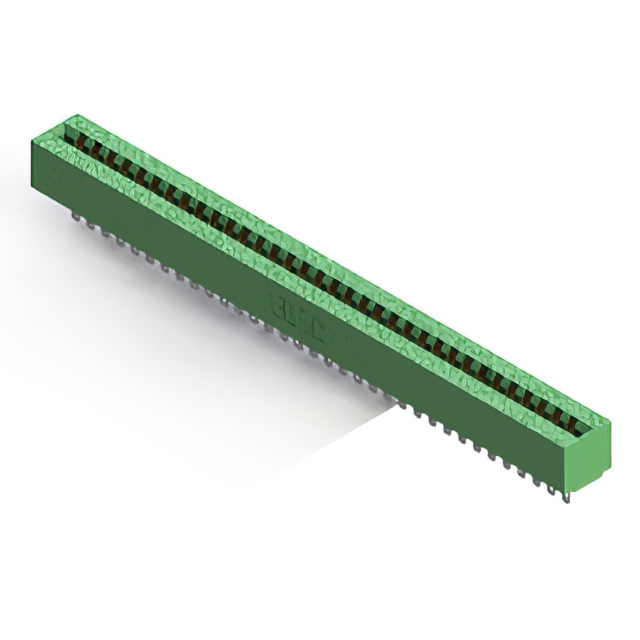

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 34 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

306-034-500-101

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 34 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	306-034-500-101

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	68
Number of Positions/Bay/Row [custom]	34
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1

306-034 Series

Part	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Number of Positions/Bay/Row [custom]	Number of Rows	Color	Termination	Material - Insulation	Contact Material	Pitch [x]	Pitch [x]	Card Type	Mounting Type	Number of Positions	Read Out	Flange Feature	Contact Type	Features	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 306-034-521-158	Female	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	1	34	2	Green	Solder	Polyester Thermoplastic	Copper Alloy	0.156 in	3.96 mm	Non Specified - Dual Edge	Panel Mount Through Hole	68	Dual	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Card Guides	Gold
EDAC Inc. 306-034-400-112	Female	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in			1	34	2	Green	Solder Eyelet(s)	Polyester Thermoplastic	Copper Alloy	0.156 in	3.96 mm	Non Specified - Dual Edge		68	Dual	Flush Mount Side Opening Unthreaded	Cantilever		Tin	3.25 mm	0.128 "
EDAC Inc. 306-034-420-102	Female	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in			1	34	2	Green	Solder	Polyester Thermoplastic	Copper Alloy	0.156 in	3.96 mm	Non Specified - Dual Edge	Panel Mount Through Hole	68	Dual	Flush Mount Top Opening Unthreaded	Cantilever		Tin	3.25 mm	0.128 "
EDAC Inc. 306-034-520-158	Female	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	1	34	2	Green	Solder	Polyester Thermoplastic	Copper Alloy	0.156 in	3.96 mm	Non Specified - Dual Edge	Panel Mount Through Hole	68	Dual	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Card Guides	Gold
EDAC Inc. 306-034-521-168	Female	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	1	34	2	Green	Solder	Polyester Thermoplastic	Copper Alloy	0.156 in	3.96 mm	Non Specified - Dual Edge	Panel Mount Through Hole	68	Dual	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Card Guides	Gold
EDAC Inc. 306-034-521-101	Female	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	1	34	2	Green	Solder	Polyester Thermoplastic	Copper Alloy	0.156 in	3.96 mm	Non Specified - Dual Edge	Through Hole	68	Dual		Cantilever		Gold
EDAC Inc. 306-034-500-101	Female	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	1	34	2	Green	Solder Eyelet(s)	Polyester Thermoplastic	Copper Alloy	0.156 in	3.96 mm	Non Specified - Dual Edge	Free Hanging (In-Line)	68	Dual		Cantilever		Gold
EDAC Inc. 306-034-420-107	Female	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in			1	34	2	Green	Solder	Polyester Thermoplastic	Copper Alloy	0.156 in	3.96 mm	Non Specified - Dual Edge	Panel Mount Through Hole	68	Dual	Flush Mount M3 Threaded Insert Top Opening	Cantilever		Tin
EDAC Inc. 306-034-500-178	Female	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	1	34	2	Green	Solder Eyelet(s)	Polyester Thermoplastic	Copper Alloy	0.156 in	3.96 mm	Non Specified - Dual Edge		68	Dual	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Card Guides	Gold
EDAC Inc. 306-034-400-107	Female	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in			1	34	2	Green	Solder Eyelet(s)	Polyester Thermoplastic	Copper Alloy	0.156 in	3.96 mm	Non Specified - Dual Edge		68	Dual	Flush Mount M3 Threaded Insert Top Opening	Cantilever		Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 18.42
Newark	Each	1	$ 20.59
		100	$ 11.85
		250	$ 9.87
		500	$ 8.86
		1000	$ 7.58

Description

General part information

306-034 Series

68 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
