346-072-559-804
ActiveEDAC Inc.

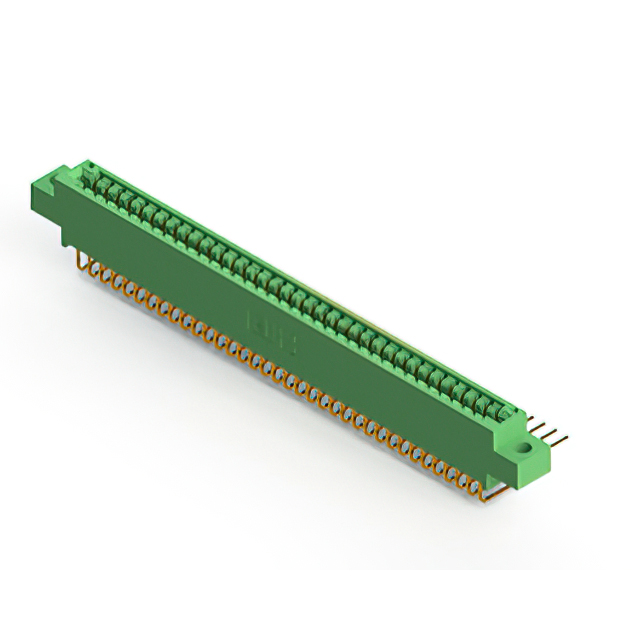

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 72 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Search across all available documentation for this part.
346-072-559-804
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 72 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-072-559-804 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 72 |
| Number of Positions/Bay/Row [custom] | 36 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Wire Wrap, Solder |
| Termination Rows | 2 |
346-072 Series
...
| Part | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Gender | Contact Type | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Number of Positions/Bay/Row [custom] | Read Out | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Mounting Type | Flange Feature | Card Type | Termination | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature [diameter] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | -40 °C | 105 ░C | Green | Copper Alloy | Female | Cantilever | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 72 | 36 | Dual | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Gold | Through Hole | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | Solder | 0.125 in | 3.18 mm | |||||
EDAC Inc. | 2 | -40 °C | 105 ░C | Green | Copper Alloy | Female | Cantilever | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 72 | 36 | Dual | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Gold | Through Hole Right Angle | Top Mount Opening Unthreaded | Non Specified - Dual Edge | Solder Wire Wrap | 0.125 in | 3.18 mm | 0.156 in | 3.96 mm | |||
EDAC Inc. | 2 | -40 °C | 105 ░C | Green | Copper Alloy | Female | Cantilever | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 72 | 36 | Dual | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Gold | Board Edge Straddle Mount | Floating Bobbin Flush Mount | Non Specified - Dual Edge | Solder | 0.125 in | 3.18 mm | 0.116 in | 2.95 mm | Card Extender | ||
EDAC Inc. | 2 | -40 °C | 105 ░C | Green | Copper Alloy | Female | Cantilever | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 72 | 36 | Dual | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Gold | Through Hole | M3 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | Solder | 0.125 in | 3.18 mm | |||||
EDAC Inc. | 2 | -40 °C | 105 ░C | Green | Copper Alloy | Female | Cantilever | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 72 | 36 | Dual | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Gold | Board Edge Straddle Mount | Top Mount Opening Unthreaded | Non Specified - Dual Edge | Solder Eyelet(s) | 0.125 in | 3.18 mm | 0.156 in | 3.96 mm | Card Extender | ||
EDAC Inc. | 2 | -40 °C | 105 ░C | Green | Copper Alloy | Female | Cantilever | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 72 | 36 | Dual | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Gold | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Solder | 0.125 in | 3.18 mm | Card Guides | ||||
EDAC Inc. | 2 | -40 °C | 105 ░C | Green | Copper Alloy | Female | Cantilever | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 72 | 36 | Dual | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Gold | Board Edge Straddle Mount | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | Solder Eyelet(s) | 0.125 in | 3.18 mm | Card Extender | ||||
EDAC Inc. | 2 | -40 °C | 105 ░C | Green | Copper Alloy | Female | Cantilever | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 72 | 36 | Dual | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Gold | Board Edge Straddle Mount | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Solder Eyelet(s) | 0.125 in | 3.18 mm | Card Extender | ||||
EDAC Inc. | 2 | -40 °C | 105 ░C | Green | Copper Alloy | Female | Cantilever | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 72 | 36 | Dual | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Gold | Through Hole Right Angle | Side Mount Opening Unthreaded | Non Specified - Dual Edge | Solder Wire Wrap | 0.125 in | 3.18 mm | 3.25 mm | 0.128 in | |||
EDAC Inc. | 2 | -40 °C | 105 ░C | Green | Copper Alloy | Female | Cantilever | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 72 | 36 | Dual | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Gold | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Wire Wrap | 0.125 in | 3.18 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
346-072 Series
72 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
