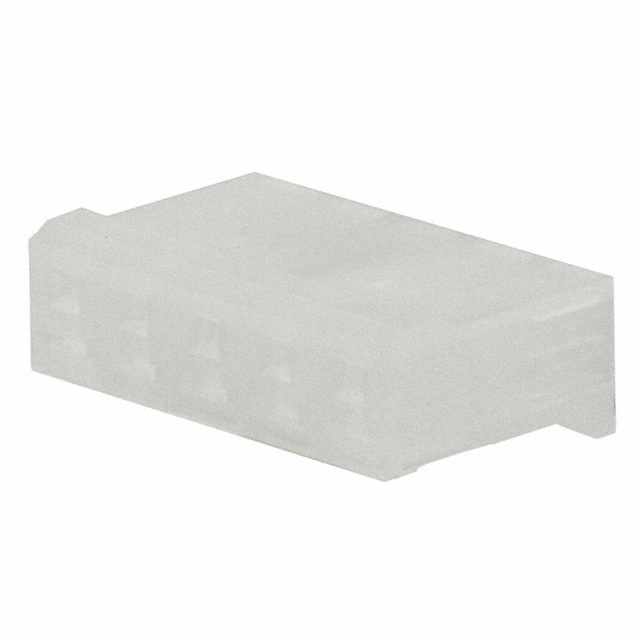

0010013056
ActiveMolex
CONN RCPT HSG 5POS 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0010013056
ActiveMolex
CONN RCPT HSG 5POS 5.08MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0010013056 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.87 | |
| 10 | $ 0.65 | |||
| 25 | $ 0.58 | |||
| 50 | $ 0.54 | |||
| 100 | $ 0.50 | |||
| 250 | $ 0.45 | |||
| 500 | $ 0.43 | |||
| 1000 | $ 0.40 | |||
| 2500 | $ 0.37 | |||
Description
General part information
001001 Series
5 Rectangular Connectors - Housings Receptacle Natural 0.200" (5.08mm)
