TMS320C28343ZFEQ

Active

Texas Instruments

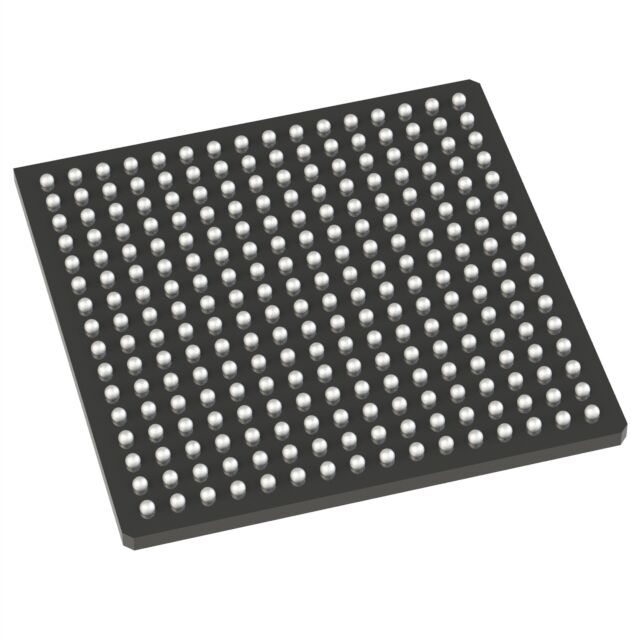

AUTOMOTIVE C2000™ 32-BIT MCU WITH 200 MIPS, FPU, 260 KB RAM, EMIF

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TMS320x2834x Delfino Enhanced Capture (ECAP) Module Reference Guide +40

TMS320C28343ZFEQ

Active

Texas Instruments

AUTOMOTIVE C2000™ 32-BIT MCU WITH 200 MIPS, FPU, 260 KB RAM, EMIF

Deep-Dive with AI

DocumentsDatasheet TMS320x2834x Delfino Enhanced Capture (ECAP) Module Reference Guide +40

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMS320C28343ZFEQ

Clock Rate	200 MHz
Grade	Automotive
Interface	CAN, McBSP, SCI, I2C, SPI, EBI/EMI
Mounting Type	Surface Mount
Non-Volatile Memory	16 kB
On-Chip RAM	260 kB
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	256-BGA
Qualification	AEC-Q100
Supplier Device Package	256-BGA (17x17)
Type	Floating Point
Voltage - Core	1.1 V
Voltage - I/O	3.3 V

TMS320F28377S-Q1 Series

C2000™ Enhanced Product 32-bit MCU with 800 MIPS, 2xCPU, 2xCLA, FPU, TMU, 1 MB flash, EMIF, 16b ADC

...

Part	Voltage - I/O	Voltage - Core	Clock Rate	On-Chip RAM	Package / Case	Non-Volatile Memory	Interface	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Grade	Non-Volatile Memory	Qualification	Voltage - Core [custom]	Supplier Device Package [x]	Supplier Device Package [y]	Core Size	Number of I/O	Oscillator Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	RAM Size	Program Memory Size	Data Converters	Connectivity	Core Processor	Program Memory Type	Speed
Texas Instruments TMS320VC5420PGE200	3.3 V	1.8 V	100 MHz	384 kB	144-LQFP	External	Host Interface McBSP	Fixed Point	100 °C	0 °C	Surface Mount	144-LQFP (20x20)
Texas Instruments TMS320C28343ZFEQ	3.3 V	1.1 V	200 MHz	260 kB	256-BGA		CAN EBI/EMI I2C McBSP SCI SPI	Floating Point	125 ¯C	-40 °C	Surface Mount	256-BGA (17x17)	Automotive	16 kB	AEC-Q100
Texas Instruments TMS320C6412GDK600	3.3 V	1.4 V	600 MHz	288 kB	548-BFBGA FCBGA	External	Host Interface McBSP PCI	Fixed Point	90 °C	0 °C	Surface Mount	548-FC/CSP (23x23)
Texas Instruments TMS320F206PZ					100-LQFP				70 °C	0 °C	Surface Mount	100-LQFP (14x14)
Texas Instruments TMS320DM8167BCYG2	1.5 V 1.8 V 3.3 V		1 GHz 1.2 GHz	1.5 MB	1031-BFBGA FCBGA		EBI/EMI Ethernet I2C McASP McBSP PCI SD/SDIO Serial ATA SPI UART USB	Digital Media System-on-Chip (DMSoC)	95 °C	0 °C	Surface Mount	1031-FCBGA (25x25)		48 kB		1 V
Texas Instruments TMS320C6742EZWT2	1.8 V 3.3 V	1 V 1.1 V 1.2 V	200 MHz	488 kB	361-LFBGA		EBI/EMI Host Interface I2C McASP McBSP SPI UART	Fixed/Floating Point	90 °C	0 °C	Surface Mount	361-NFBGA		1.088 MB			16	16
Texas Instruments TMS320C5504AZCHA10	1.8 V 2.5 V 2.8 V 3.3 V	1.05 V 1.3 V	100 MHz	2 Mbit	196-LFBGA	ROM	EBI/EMI I2C I2S MMC/SD SPI UART/USART USB	Fixed Point	85 °C	-40 °C	Surface Mount	196-NFBGA (10x10)		128 kB
Texas Instruments TMS320C6202BGNZ250	3.3 V	1.5 V	250 MHz	384 kB	352-BBGA FCBGA	External	McBSP	Fixed Point	90 °C	0 °C	Surface Mount	352-FCBGA (27x27)
Texas Instruments TMS320C6748BZWT3	1.8 V 3.3 V	1.2 V	375 MHz	448 kB	361-LFBGA	External	EBI/EMI Ethernet MAC Host Interface I2C McASP SPI UART USB	Fixed/Floating Point	90 °C	0 °C	Surface Mount	361-NFBGA					16	16
Texas Instruments TMS320F28026PTQ					48-LQFP				125 °C	-40 °C	Surface Mount	48-LQFP (7x7)	Automotive		AEC-Q100				32-Bit Single-Core	22	Internal	1.71 V	1.995 V	6K x 16	32 KB	A/D 13x12b	I2C SCI SPI UART/USART	C28x	FLASH	60 MHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	90	$ 28.90
Texas Instruments	JEDEC TRAY (5+1)	1	$ 28.81
		100	$ 25.61
		250	$ 21.05
		1000	$ 18.83

Description

General part information

TMS320F28377S-Q1 Series

The TMS320C672x is the next generation of Texas Instruments' C67x generation of high-performance 32-/64-bit floating-point digital signal processors. The TMS320C672x includes the TMS320C6727B, TMS320C6726B, TMS320C6722B, and TMS320C6720 devices.(1)

Enhanced C67x+ CPU. The C67x+ CPU is an enhanced version of the C67x CPU used on the C671x DSPs. It is compatible with the C67x CPU but offers significant improvements in speed, code density, and floating-point performance per clock cycle. At 350 MHz, the CPU is capable of a maximum performance of 2800 MIPS/2100 MFLOPS by executing up to eight instructions (six of which are floating-point instructions) in parallel each cycle. The CPU natively supports 32-bit fixed-point, 32-bit single-precision floating-point, and 64-bit double-precision floating-point arithmetic.

Efficient Memory System. The memory controller maps the large on-chip 256K-byte RAM and 384K-byte ROM as unified program/data memory. Development is simplified since there is no fixed division between program and data memory size as on some other devices.
