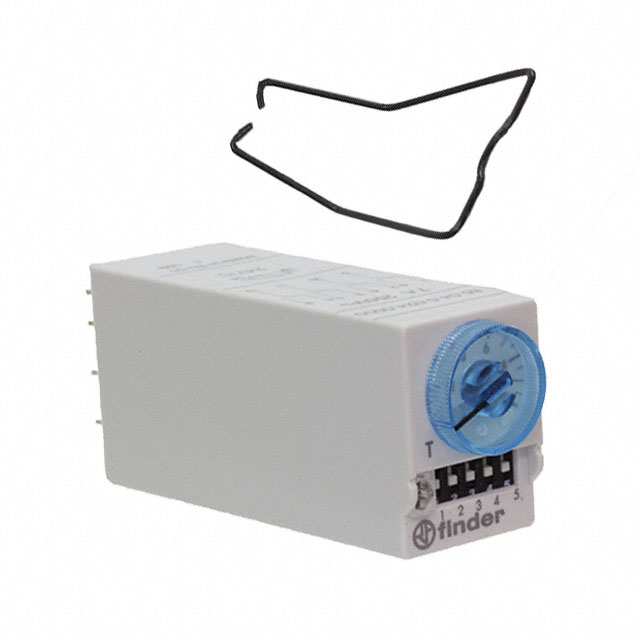

85.04.0.024.0000

Active

Finder Relays, Inc.

RELAY TIME DELAY 100HR 7A 250V

Search across all available documentation for this part.

Active

Finder Relays, Inc.

RELAY TIME DELAY 100HR 7A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	85.04.0.024.0000

Circuit	4 Form C
Circuit	4PDT
Contact Rating @ Voltage	7 A, 250 VAC
Delay Time [Max]	100 Hrs
Delay Time [Min]	0.05 Sec
Function	Programmable (Multi-Function)
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Trigger Signal, Input Voltage
Voltage - Supply	24 VAC

Part	Relay Type	Circuit	Circuit	Contact Rating @ Voltage	Timing Initiate Method	Mounting Type	Voltage - Supply	Termination Style	Delay Time [Max]	Delay Time [Min]	Function	Timing Adjustment Method
Finder Relays, Inc. 85.04.0.012.0000	Mechanical Relay	4 Form C	4PDT	7 A 250 VAC	Input Voltage Trigger Signal	Socketable	12 VAC	Plug In	100 Hrs	0.05 Sec	Programmable (Multi-Function)	Hand Dial
Finder Relays, Inc. 85.04.0.024.0000	Mechanical Relay	4 Form C	4PDT	7 A 250 VAC	Input Voltage Trigger Signal	Socketable	24 VAC	Plug In	100 Hrs	0.05 Sec	Programmable (Multi-Function)	Hand Dial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Programmable (Multi-Function) Time Delay Relay 4PDT (4 Form C) 0.05 Sec ~ 100 Hrs Delay 7A @ 250VAC Socketable
