09210073122

Active

HARTING Technology Group

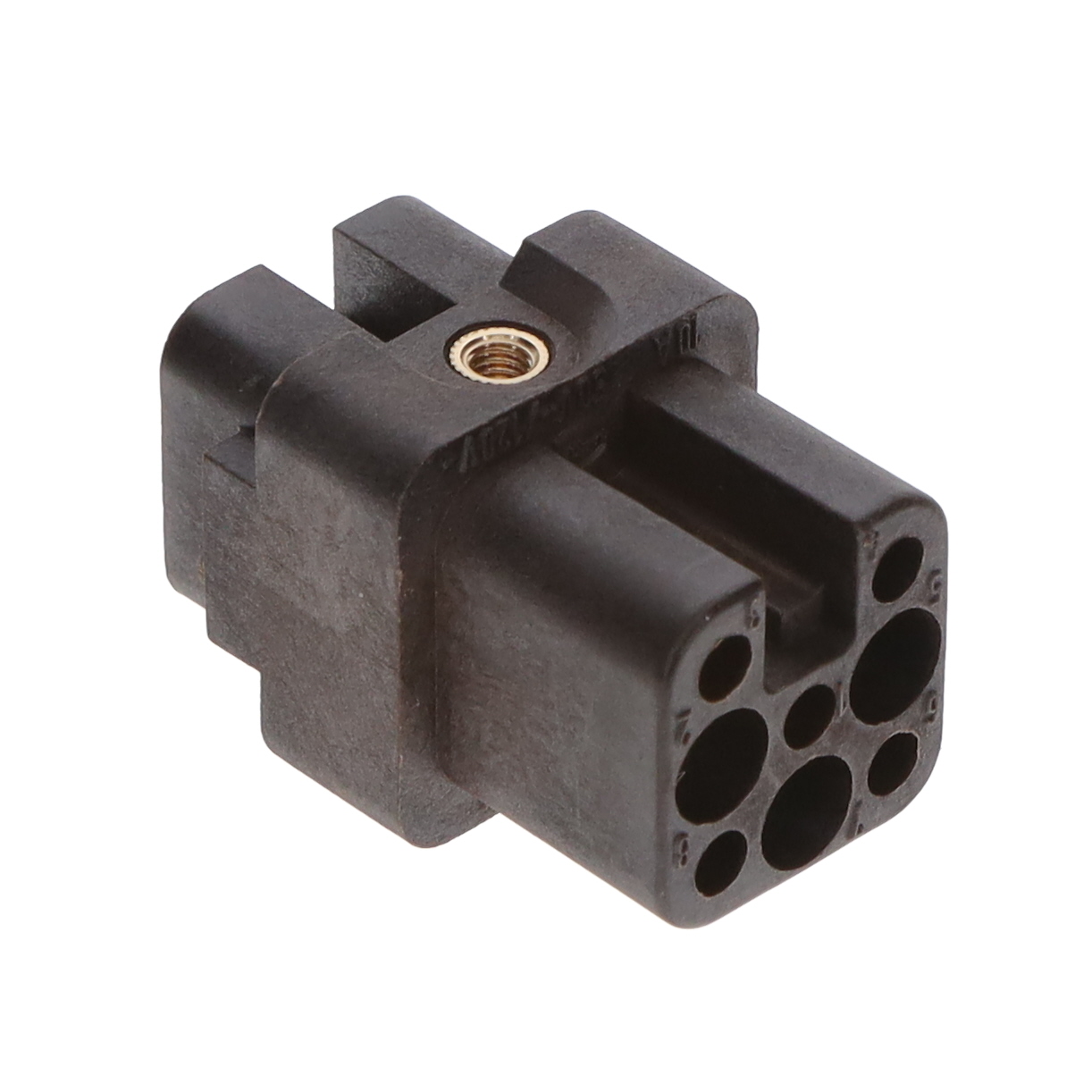

HAN D 7 POS. F INSERT CRIMP RYTON ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN D 7 POS. F INSERT CRIMP RYTON ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Size	Contact Type	Termination Style	Housing Material	Current Rating (Amps)	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Number of Positions	Voltage Rating	Color	Number of Positions
HARTING Technology Group 09210073131	Insert without Contacts	3 A	Han® D	Crimp	Polyamide (PA) Nylon	10 A	Female	125 °C	-40 °C	UL94 HB	7+Ground	600 V	Gray
HARTING Technology Group 09210073022				Crimp			Male							7
HARTING Technology Group 09210073101	Insert without Contacts			Crimp			Female							7
HARTING Technology Group 09210073122				Crimp			Female							7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert 7 Position Crimp
