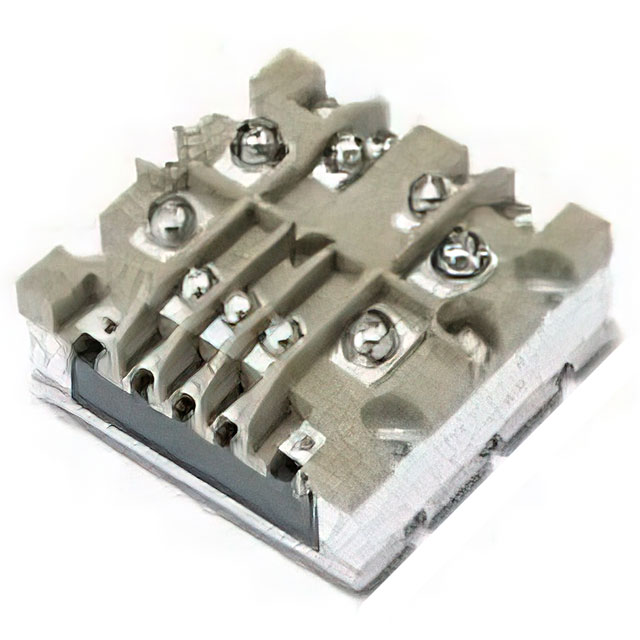

VI-JT1-CZ-B1 - VI-JT1-xx-B1

VI-JT1-CZ-B1

Obsolete
Vicor Corporation

DC DC CONVERTER 12V 25W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
VI-JT1-CZ-B1 - VI-JT1-xx-B1

VI-JT1-CZ-B1

Obsolete
Vicor Corporation

DC DC CONVERTER 12V 25W

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationVI-JT1-CZ-B1
ApplicationsITE (Commercial)
Current - Output (Max) [Max]2.08 A
Efficiency90 %
FeaturesOCP, SCP
Mounting TypeThrough Hole
Number of Outputs1
Operating Temperature [custom]100 °C, -25 °C
Package / CaseHalf Brick
Power (Watts)25 W
Size / Dimension [x]59.9 mm
Size / Dimension [x]2.36 in
Size / Dimension [y]2.28 in
Size / Dimension [y]57.9 mm
Size / Dimension [z]1.08 "
Size / Dimension [z]27.4 mm
TypeIsolated Module
Voltage - Input (Max) [Max]160 V
Voltage - Input (Min) [Min]66 V
Voltage - Isolation3000 V
Voltage - Output 112 V

VI-JT1 Series

PartVoltage - Input (Max) [Max]Number of OutputsMounting TypeSize / Dimension [x]Size / Dimension [y]Size / Dimension [y]Size / Dimension [z]Size / Dimension [z]Size / Dimension [x]Voltage - Input (Min) [Min]FeaturesEfficiencyVoltage - Output 1ApplicationsPower (Watts)Current - Output (Max) [Max]Package / CaseVoltage - IsolationOperating Temperature [custom]TypeSize / Dimension [z]Size / Dimension [y]
Vicor Corporation
VI-JT1-CZ-S
160 V
1
Through Hole
57.9 mm
1.8 in
45.7 mm
0.52 "
13.2 mm
2.28 in
66 V
OCP
SCP
90 %
12 V
ITE (Commercial)
25 W
2.08 A
Half Brick
3000 V
-25 °C
100 °C
Isolated Module
Vicor Corporation
VI-JT1-CZ
160 V
1
Through Hole
57.9 mm
2.4 "
0.5 in
2.28 in
66 V
OCP
SCP
90 %
12 V
ITE (Commercial)
25 W
2.08 A
Half Brick
3000 V
-25 °C
100 °C
Isolated Module
12.7 mm
70 mm
Vicor Corporation
VI-JT1-CW
160 V
1
Through Hole
57.9 mm
2.4 "
0.5 in
2.28 in
66 V
OCP
SCP
90 %
12 V
ITE (Commercial)
100 W
8.33 A
Half Brick
3000 V
-25 °C
100 °C
Isolated Module
12.7 mm
70 mm
Vicor Corporation
VI-JT1-EW
160 V
1
Through Hole
57.9 mm
2.4 "
0.5 in
2.28 in
66 V
OCP
SCP
88 %
12 V
ITE (Commercial)
100 W
8.33 A
Half Brick
3000 V
Isolated Module
12.7 mm
70 mm
Vicor Corporation
VI-JT1-EY-F2
160 V
1
Through Hole
57.9 mm
1.86 "
1.04 in
2.28 in
66 V
OCP
SCP
88 %
12 V
ITE (Commercial)
50 W
4.17 A
Half Brick
3000 V
Isolated Module
26.4 mm
47.2 mm
Vicor Corporation
VI-JT1-CY
160 V
1
Through Hole
57.9 mm
2.4 "
0.5 in
2.28 in
66 V
OCP
SCP
90 %
12 V
ITE (Commercial)
50 W
4.17 A
Half Brick
3000 V
-25 °C
100 °C
Isolated Module
12.7 mm
70 mm
Vicor Corporation
VI-JT1-CZ-B1
160 V
1
Through Hole
59.9 mm
2.28 in
1.08 "
2.36 in
66 V
OCP
SCP
90 %
12 V
ITE (Commercial)
25 W
2.08 A
Half Brick
3000 V
-25 °C
100 °C
Isolated Module
27.4 mm
57.9 mm
Vicor Corporation
VI-JT1-EX
160 V
1
Through Hole
57.9 mm
2.4 "
0.5 in
2.28 in
66 V
OCP
SCP
88 %
12 V
ITE (Commercial)
75 W
6.25 A
Half Brick
3000 V
Isolated Module
12.7 mm
70 mm
Vicor Corporation
VI-JT1-CY-B1
160 V
1
Through Hole
59.9 mm
2.28 in
1.08 "
2.36 in
66 V
OCP
SCP
90 %
12 V
ITE (Commercial)
50 W
4.17 A
Half Brick
3000 V
-25 °C
100 °C
Isolated Module
27.4 mm
57.9 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

VI-JT1 Series

Isolated Module DC DC Converter 1 Output 12V 2.08A 66V - 160V Input
