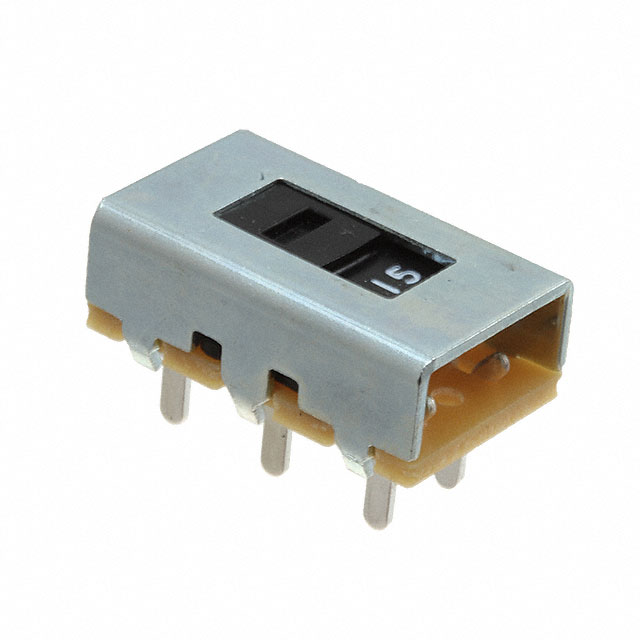

C46206LFRX
ActiveSwitchcraft Inc.
SWITCH SLIDE DPDT 3A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C46206LFRX
ActiveSwitchcraft Inc.
SWITCH SLIDE DPDT 3A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C46206LFRX |
|---|---|
| Actuator Length | Flush |
| Actuator Material | Thermoplastic |
| Actuator Type | Screwdriver Slot |
| Circuit | DPDT |
| Contact Material | Copper Alloy |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 500 mA, 3 A |
| Features [Max] | 230 V |
| Features [Min] | 115 V |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Switch Function | On-On (Line Voltage Selector) |
| Switch Travel | 4.78 mm |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
C46206 Series
Slide Switch DPDT Through Hole
