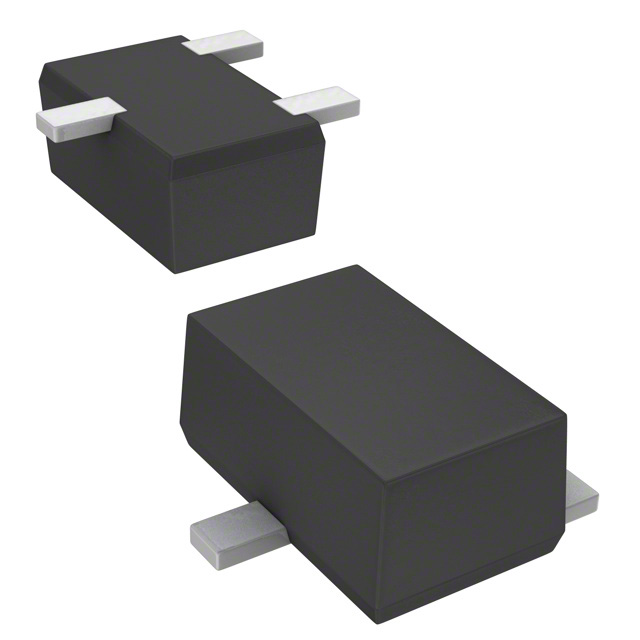

2SC4562GRL

Obsolete

Panasonic Industrial Automation Sales

RF TRANS NPN 50V 250MHZ SMINI3

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

RF TRANS NPN 50V 250MHZ SMINI3

Technical Specifications

Parameters and characteristics for this part

Specification	2SC4562GRL

Current - Collector (Ic) (Max) [Max]	50 mA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	250
Frequency - Transition	250 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	SC-85
Supplier Device Package	SMini3-F2
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

Part	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Frequency - Transition	Operating Temperature	Mounting Type	Transistor Type	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	Package / Case
Panasonic Industrial Automation Sales 2SC4562GRL	250	50 V	250 MHz	150 °C	Surface Mount	NPN	SMini3-F2	50 mA	SC-85

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Transistor NPN 50V 50mA 250MHz 150mW Surface Mount SMini3-F2
