88AB2-172

Active

Grayhill Inc.

KEYPAD, 88 SERIES, 3 X 4, MATRIX, ABS (ACRYLONITRILE BUTADIENE STYRENE), 10 MA, 24 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

88AB2-172

Active

Grayhill Inc.

KEYPAD, 88 SERIES, 3 X 4, MATRIX, ABS (ACRYLONITRILE BUTADIENE STYRENE), 10 MA, 24 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	88AB2-172

Contact Rating @ Voltage	24 VDC, 0.01 A
Illumination	Non-Illuminated
Ingress Protection	IP42
Key Color	Blue
Key Type	Polyester Overlay
Legend	Telephone Format
Legend Color	White
Legend Type	Fixed
Matrix (Columns x Rows) [custom]	4
Matrix (Columns x Rows) [custom]	3
Mounting Type	Panel Mount, Front or Rear
Number of Keys	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Operational Life	3000000 Cycles
Output Type	1.81 mOhm
Switch Type	Snap Dome
Termination Style	Pin Header

88AB2 Series

Part	Legend Type	Illumination	Key Type	Legend Color	Switch Type	Termination Style	Ingress Protection	Contact Rating @ Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Operational Life	Key Color	Legend	Output Type	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Mounting Type	Number of Keys
Grayhill Inc. 88AB2-172	Fixed	Non-Illuminated	Polyester Overlay	White	Snap Dome	Pin Header	IP42	0.01 A 24 VDC	-40 °C	80 C	3000000 Cycles	Blue	Telephone Format	1.81 mOhm	4	3	Panel Mount Front or Rear	12

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 53.28
		10	$ 50.14
		25	$ 48.58
		50	$ 45.44
		100	$ 42.94
Newark	Each	1	$ 61.45
		5	$ 57.76
		10	$ 56.53
		25	$ 55.31
		50	$ 54.07
		100	$ 52.84

Description

General part information

88AB2 Series

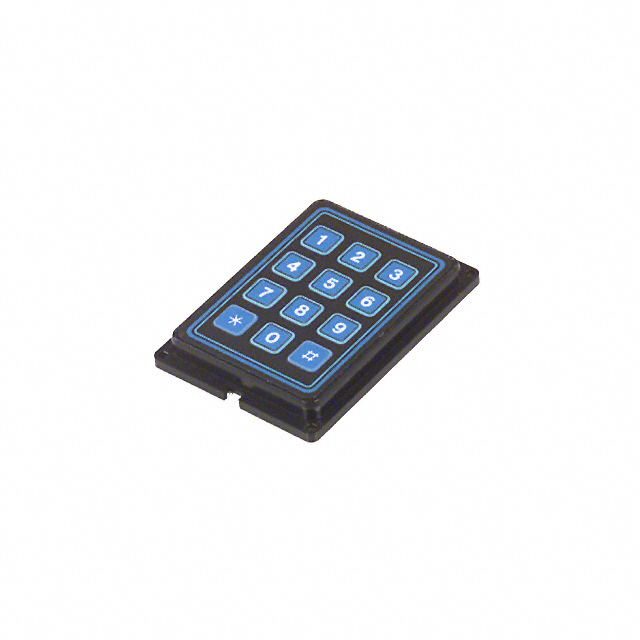

The 88AB2-172 is a 12-way blue legend Keypad with ABS (acrylonitrile butadiene styrene) housing and matrix output. Sealed and flange mounted, 0 to 9 legends and rear panel mounting. The graphic legend is silk-screen printed on the second surface of a clear polyester film, providing maximum legend protection. It withstands high humidity and it is resistant to scratching, marring and dulling of the surface caused by fingernails, wiping cloths and cleaning materials. It has excellent solvent resistance to water, petroleum oil, alcohols and aliphatic hydrocarbons. Use an optional gasket with the keyboard. The contact system is internally sealed by a special adhesive backed sheet that holds the domes in position on the PC board.
