CS1214AGF260

Active

CIT Relay and Switch

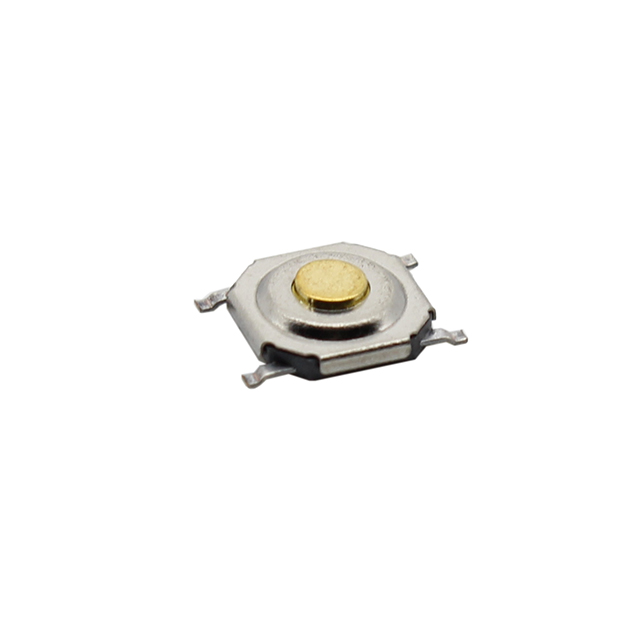

ROUND BUTTON 50MA VERTICAL WELDING SPST - NORMALLY OPEN 2.6N 50V TACTILE SWITCHES ROHS

Search across all available documentation for this part.

Active

CIT Relay and Switch

ROUND BUTTON 50MA VERTICAL WELDING SPST - NORMALLY OPEN 2.6N 50V TACTILE SWITCHES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	CS1214AGF260

Actuator Height off PCB, Vertical [z]	1.5 mm
Actuator Material	Brass, Nickel Plated
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Force	260 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	5.2 mm
Outline [y]	5.2 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

Part	Actuator Type	Circuit	Illumination	Outline [y]	Outline [x]	Switch Travel	Actuator Material	Operating Force	Switch Function	Actuator Height off PCB, Vertical [z]	Contact Rating @ Voltage	Termination Style	Actuator Orientation	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
CIT Relay and Switch CS1214AGF260	Standard	SPST-NO	Non-Illuminated	5.2 mm	5.2 mm	0.25 mm	Brass Nickel Plated	260 gf	Off-Mom	1.5 mm	0.05 A 50 VDC	Gull Wing	Top Actuated	Surface Mount	85 °C	-40 °C
CIT Relay and Switch CS1214AJF260	Standard	SPST-NO	Non-Illuminated	5.2 mm	5.2 mm	0.25 mm	Brass Nickel Plated	260 gf	Off-Mom	1.5 mm	0.05 A 50 VDC	J Lead	Top Actuated	Surface Mount	85 °C	-40 °C
CIT Relay and Switch CS1214AJF160	Standard	SPST-NO	Non-Illuminated	5.2 mm	5.2 mm	0.25 mm	Brass Nickel Plated		Off-Mom	1.5 mm	0.05 A 50 VDC	J Lead	Top Actuated	Surface Mount	85 °C	-40 °C
CIT Relay and Switch CS1214AGF160	Standard	SPST-NO	Non-Illuminated	5.2 mm	6.4 mm	0.25 mm	Brass Nickel Plated		Off-Mom	1.5 mm	0.05 A 50 VDC	Gull Wing	Top Actuated	Surface Mount	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
