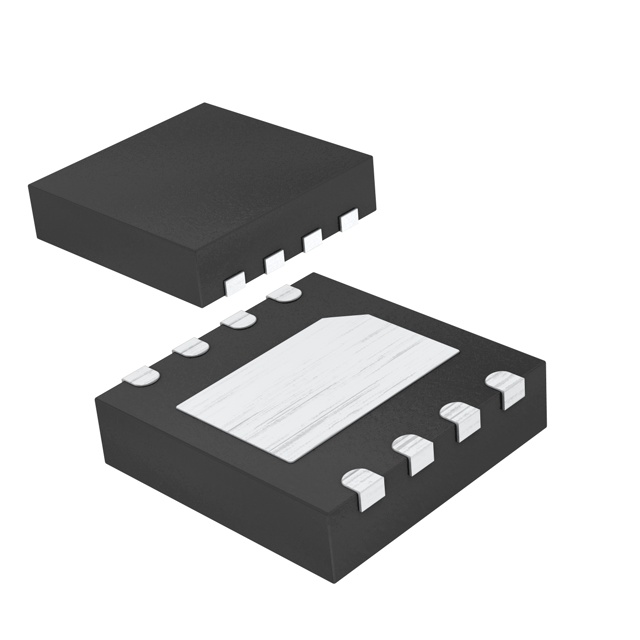

DS1088CN-133+T

Obsolete

Analog Devices Inc./Maxim Integrated

IC CLOCK GENERATOR 8TDFN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DS1088CN-133+T

Obsolete

Analog Devices Inc./Maxim Integrated

IC CLOCK GENERATOR 8TDFN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DS1088CN-133+T

Differential - Input:Output	False
Divider/Multiplier	Yes/No
Frequency - Max [Max]	133.3 MHz
Input	Clock
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Output	Clock
Package / Case	8-WDFN Exposed Pad
PLL	False
Ratio - Input:Output [custom]	1:1
Supplier Device Package	8-TDFN (3x3)
Type	Clock Generator
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V

DS1088 Series

Part	Mounting Type	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Input	Ratio - Input:Output [custom]	Divider/Multiplier	Package / Case	Package / Case [custom]	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Output	Supplier Device Package	Frequency - Max [Max]
Analog Devices Inc./Maxim Integrated DS1088LU-24+	Surface Mount	1	85 °C	-20 C	Clock	1:1	Yes/No	8-MSOP 8-TSSOP	0.118 in	3 mm	2.7 V	3.6 V	Clock Generator	Clock	8-uMAX/uSOP
Analog Devices Inc./Maxim Integrated DS1088LU-66+	Surface Mount	1	85 °C	-20 C	Clock	1:1	Yes/No	8-MSOP 8-TSSOP	0.118 in	3 mm	2.7 V	3.6 V	Clock Generator	Clock	8-uMAX/uSOP	66.6 MHz
Analog Devices Inc./Maxim Integrated DS1088LU-10+T	Surface Mount	1	85 °C	-20 C	Clock	1:1	Yes/No	8-MSOP 8-TSSOP	0.118 in	3 mm	2.7 V	3.6 V	Clock Generator	Clock	8-uMAX/uSOP	10 MHz
Analog Devices Inc./Maxim Integrated DS1088LU-02A+T	Surface Mount	1	85 °C	-20 C	Clock	1:1	Yes/No	8-MSOP 8-TSSOP	0.118 in	3 mm	2.7 V	3.6 V	Clock Generator	Clock	8-uMAX/uSOP	2.048 MHz
Analog Devices Inc./Maxim Integrated DS1088LU-02+T	Surface Mount	1	85 °C	-20 C	Clock	1:1	Yes/No	8-MSOP 8-TSSOP	0.118 in	3 mm	2.7 V	3.6 V	Clock Generator	Clock	8-uMAX/uSOP	2.048 MHz
Analog Devices Inc./Maxim Integrated DS1088LU-829+T	Surface Mount	1	85 °C	-20 C	Clock	1:1	Yes/No	8-MSOP 8-TSSOP	0.118 in	3 mm	2.7 V	3.6 V	Clock Generator	Clock	8-uMAX/uSOP
Analog Devices Inc./Maxim Integrated DS1088CN-133+T	Surface Mount	1	85 °C	-20 C	Clock	1:1	Yes/No	8-WDFN Exposed Pad			2.7 V	3.6 V	Clock Generator	Clock	8-TDFN (3x3)	133.3 MHz
Analog Devices Inc./Maxim Integrated DS1088LU-100+	Surface Mount	1	85 °C	-20 C	Clock	1:1	Yes/No	8-MSOP 8-TSSOP	0.118 in	3 mm	2.7 V	3.6 V	Clock Generator	Clock	8-uMAX/uSOP
Analog Devices Inc./Maxim Integrated DS1088LU-100+T	Surface Mount	1	85 °C	-20 C	Clock	1:1	Yes/No	8-MSOP 8-TSSOP	0.118 in	3 mm	2.7 V	3.6 V	Clock Generator	Clock	8-uMAX/uSOP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DS1088 Series

Clock Generator IC 133.3MHz 1 8-WDFN Exposed Pad
