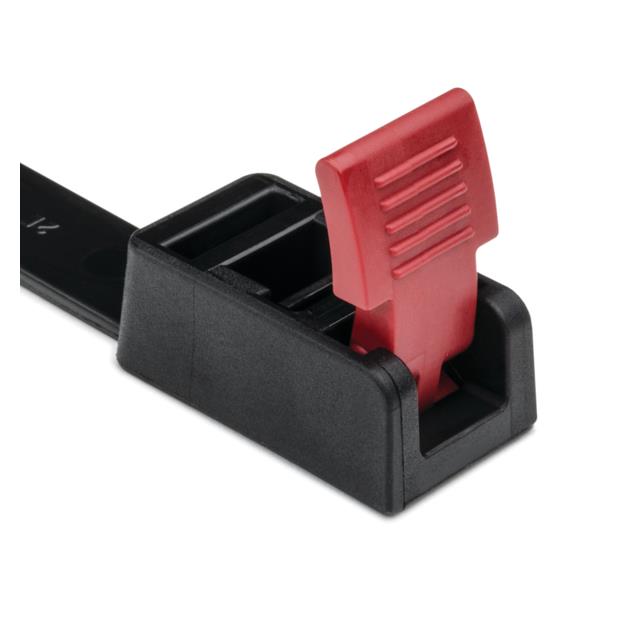

115-00030

Active

HELLERMANNTYTON

RELEASABLE CABLE TIE, 29.6" LONG, 200 LB TENSILE STRENGTH, PA66HIRH(S), BLACK, 5/PKG

Search across all available documentation for this part.

Active

HELLERMANNTYTON

RELEASABLE CABLE TIE, 29.6" LONG, 200 LB TENSILE STRENGTH, PA66HIRH(S), BLACK, 5/PKG

Technical Specifications

Parameters and characteristics for this part

Specification	115-00030

Bundle Diameter [diameter]	210 mm
Bundle Diameter [diameter]	8.27 in
Color	Black
Features	2-Piece Design, Impact Resistant
Length - Actual [x]	752 mm
Length - Actual [x]	2.467 ft
Length - Approximate	29.5 "
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Tensile Strength	200 lbs
Tensile Strength	90.72 kg
Width [x]	13 mm
Width [x]	0.512 in
Wire/Cable Tie Type	Lashing, Releasable

Part	Material	Tensile Strength	Tensile Strength	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Wire/Cable Tie Type	Length - Actual [x]	Length - Actual [x]	Width [x]	Width [x]	Features	Mounting Type	Color	Length - Approximate	Length - Actual	Length - Actual	Length - Actual	Bundle Diameter	Bundle Diameter
HELLERMANNTYTON 115-00030	Polyamide (PA66) Nylon 6/6	200 lbs	90.72 kg	210 mm	8.27 in	Lashing Releasable	752 mm	2.467 ft	13 mm	0.512 in	2-Piece Design Impact Resistant	Free Hanging (In-Line)	Black	29.5 "
HELLERMANNTYTON 115-00042	Polyamide (PA) Nylon					Branch Releasable			4.7 mm	0.185 in	UV Resistant	Free Hanging (In-Line)	Black	7.75 in	200 mm	0.656 ft	7.87 "	1.18 " 1.57 "
HELLERMANNTYTON 115-00046	Polyamide (PA66) Nylon 6/6	50 lbs	22.68 kg	32 mm	1.26 "	Standard Releasable			7.4 mm	0.291 in		Free Hanging (In-Line)	Black
HELLERMANNTYTON 115-00054	Polyamide (PA66) Nylon 6/6	50 lbs	22.68 kg			Standard Releasable			7.4 mm	0.291 in		Free Hanging (In-Line)	Natural					2.83 "	71.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lashing, Releasable Black 8.27" (210.00mm) 0.512" (13.00mm) 200 lbs (90.72 kg)
