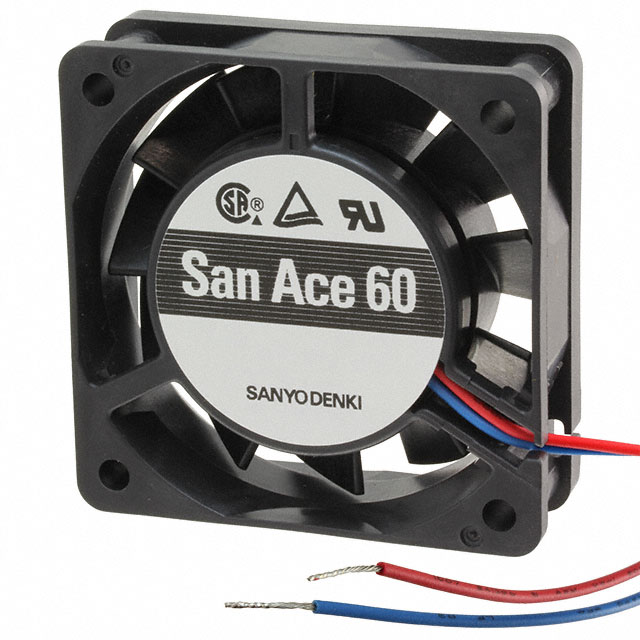

109P0624M702

Obsolete

Sanyo Denki America Inc.

FAN AXIAL 60X15MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Handling Instructions for Fan Motors

109P0624M702

Obsolete

Sanyo Denki America Inc.

FAN AXIAL 60X15MM 24VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Handling Instructions for Fan Motors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109P0624M702

Air Flow	0.297 m³/min
Air Flow	10.6 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	40 mA
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Plastic
Noise	25 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
RPM	3100 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	0.091 in H2O
Static Pressure	22.7 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Weight	60.33 g
Weight	0.133 lb
Width [x]	15 mm

109P0624 Series

Part	Material - Blade	Voltage - Rated	Fan Type	Termination	Width [y]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Power (Watts)	Weight	Weight	Bearing Type	Static Pressure	Static Pressure	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Air Flow	Air Flow	Noise	Approval Agency	Material - Frame	RPM	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Width [x]
Sanyo Denki America Inc. 109P0624H6D01	Plastic	24 VDC	Tubeaxial	3 Wire Leads	20 mm	-20 °C	70 °C	-20 C	70 °C	Locked Rotor Sensor	1.68 W	90.26 g	0.199 lb	Ball	31.8 Pa	0.128 in H2O	70 mA	60 mm	60 mm	14.8 CFM	0.414 mł/min	31 dB(A)	CSA TUV UL	Plastic	4200 RPM
Sanyo Denki America Inc. 109P0624M602	Plastic	24 VDC	Tubeaxial	2 Wire Leads	20 mm	-20 °C	70 °C	-20 C	70 °C		1.2 W	90.26 g	0.199 lb	Ball	18.9 Pa	0.076 in H2O	50 mA	60 mm	60 mm	10.6 CFM	0.297 m³/min	25 dB(A)	CSA TUV UL	Plastic	3200 RPM
Sanyo Denki America Inc. 109P0624M6D01	Plastic	24 VDC	Tubeaxial	3 Wire Leads	20 mm	-20 °C	70 °C	-20 C	70 °C	Locked Rotor Sensor	1.2 W	90.26 g	0.199 lb	Ball	18.9 Pa	0.076 in H2O	50 mA	60 mm	60 mm	10.6 CFM	0.297 m³/min	25 dB(A)	CSA TUV UL	Plastic	3200 RPM
Sanyo Denki America Inc. 109P0624H601	Plastic	24 VDC	Tubeaxial	3 Wire Leads	20 mm	-20 °C	70 °C	-20 C	70 °C	Locked Rotor Protection Speed Sensor (Tach)	1.68 W	90.26 g	0.199 lb	Ball	31.8 Pa	0.128 in H2O	70 mA	60 mm	60 mm	14.8 CFM	0.414 mł/min	31 dB(A)	CSA TUV UL	Plastic	4200 RPM
Sanyo Denki America Inc. 109P0624S701	Plastic	24 VDC	Tubeaxial	3 Wire Leads		-20 °C	70 °C	-20 C	70 °C	Locked Rotor Protection Speed Sensor (Tach)	1.92 W	60.33 g	0.133 lb	Ball	58.8 Pa	0.236 in H2O		60 mm	60 mm	16.9 CFM	0.473 mł/min	36 dB	CSA TUV UL	Plastic	5000 RPM	40000 Hrs	27.6 VDC	14 VDC	15 mm
Sanyo Denki America Inc. 109P0624W602	Plastic	24 VDC	Tubeaxial	2 Wire Leads	20 mm	-20 °C	70 °C	-20 C	70 °C		1.68 W	90.26 g	0.199 lb	Ball	31.8 Pa	0.128 in H2O	70 mA	60 mm	60 mm	14.8 CFM	0.414 mł/min	31 dB(A)	CSA TUV UL	Plastic	4200 RPM		30 V	12 VDC
Sanyo Denki America Inc. 109P0624S702	Plastic	24 VDC	Tubeaxial	2 Wire Leads		-20 °C	70 °C	-20 C	70 °C		1.92 W	60.33 g	0.133 lb	Ball	58.8 Pa	0.236 in H2O		60 mm	60 mm	16.9 CFM	0.473 mł/min	36 dB	CSA TUV UL	Plastic	5000 RPM	40000 Hrs	27.6 VDC	14 VDC	15 mm
Sanyo Denki America Inc. 109P0624M702	Plastic	24 VDC	Tubeaxial	2 Wire Leads		-20 °C	70 °C	-20 C	70 °C			60.33 g	0.133 lb	Ball	22.7 Pa	0.091 in H2O	40 mA	60 mm	60 mm	10.6 CFM	0.297 m³/min	25 dB(A)	CSA TUV UL	Plastic	3100 RPM				15 mm
Sanyo Denki America Inc. 109P0624H701	Plastic	24 VDC	Tubeaxial	3 Wire Leads		-20 °C	70 °C	-20 C	70 °C	Locked Rotor Protection Speed Sensor (Tach)	1.44 W	60.33 g	0.133 lb	Ball	38.2 Pa	0.153 in H2O	60 mA	60 mm	60 mm	14.1 CFM	0.395 mł/min	32 dB	CSA TUV UL	Plastic	4100 RPM		27.6 VDC	14 VDC	15 mm
Sanyo Denki America Inc. 109P0624W601	Plastic	24 VDC	Tubeaxial	3 Wire Leads	20 mm	-20 °C	70 °C	-20 C	70 °C	Locked Rotor Protection Speed Sensor (Tach)	1.68 W	90.26 g	0.199 lb	Ball	31.8 Pa	0.128 in H2O	70 mA	60 mm	60 mm	14.8 CFM	0.414 mł/min	31 dB(A)	CSA TUV UL	Plastic	4200 RPM		30 V	12 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 10.00

Description

General part information

109P0624 Series

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 10.6 CFM (0.297m³/min) 2 Wire Leads
