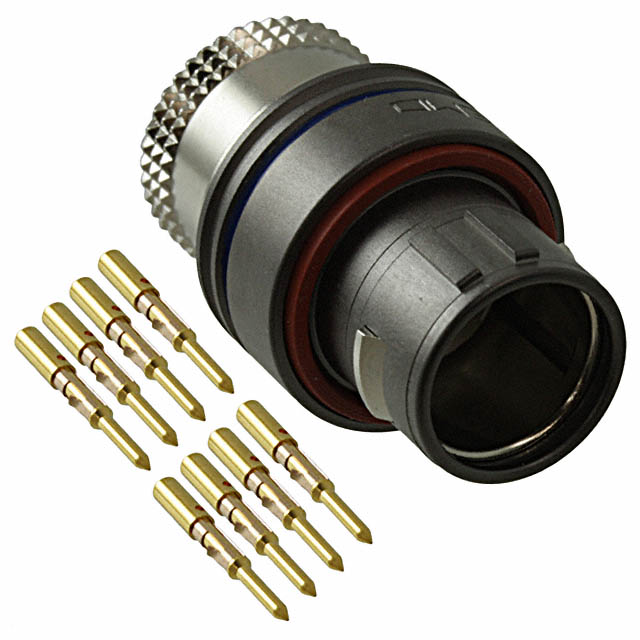

FGN.2F.308.XLC

Active

LEMO

CONN PLUG MALE 8POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet F Series Catalog

FGN.2F.308.XLC

Active

LEMO

CONN PLUG MALE 8POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet F Series Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FGN.2F.308.XLC

Applications	Aerospace
Cable Opening [custom]	14 mm
Cable Opening [custom]	0.551 in
Color	Gray
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-15 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	308
Shielding	Shielded
Termination	Crimp

FGN.2F Series

Part	Shell Finish	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Material	Contact Finish - Mating	Insert Material	Orientation	Mounting Type	Shell Size - Insert	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Primary Material	Material Flammability Rating	Ingress Protection	Shielding	Shell Material	Number of Positions	Applications	Cable Opening [custom]	Cable Opening [custom]	Fastening Type	Termination	Current Rating (Amps)	Connector Type
LEMO FGN.2F.319.XLCF	Nickel	200 °C	-15 °C	Gray	Brass	Gold	Polyetheretherketone (PEEK)	N	Free Hanging (In-Line)	319	1 µm	39.4 µin	Metal	UL94 V-0	IP67 - Dust Tight Waterproof	Shielded	Aluminum Alloy	19	Aerospace	14 mm	0.551 in	Push-Pull	Crimp	5 A	Male Pins Plug
LEMO FGN.2F.312.CLC	Chrome	200 °C	-55 °C	Silver	Brass	Gold	Polyetheretherketone (PEEK)	N	Free Hanging (In-Line)	312	1 µm	39.4 µin	Metal	UL94 V-0	IP67 - Dust Tight Waterproof	Shielded	Brass	12	Aerospace	14 mm	0.551 in	Push-Pull	Crimp	7 A	Male Pins Plug
LEMO FGN.2F.310.CLC	Chrome	200 °C	-55 °C	Silver	Brass	Gold	Polyetheretherketone (PEEK)	N	Free Hanging (In-Line)	310	1 µm	39.4 µin	Metal	UL94 V-0	IP67 - Dust Tight Waterproof	Shielded	Brass	10	Aerospace	14 mm	0.551 in	Push-Pull	Crimp	8 A	Male Pins Plug
LEMO FGN.2F.319.CLC	Chrome	200 °C	-55 °C	Silver	Brass	Gold	Polyetheretherketone (PEEK)	N	Free Hanging (In-Line)	319	1 µm	39.4 µin	Metal	UL94 V-0	IP67 - Dust Tight Waterproof	Shielded	Brass	19	Aerospace	14 mm	0.551 in	Push-Pull	Crimp	5 A	Male Pins Plug
LEMO FGN.2F.319.YLC	Nickel	200 °C	-15 °C	Gray	Brass	Gold	Polyetheretherketone (PEEK)	N	Free Hanging (In-Line)	319	1 µm	39.4 µin	Metal	UL94 V-0	IP67 - Dust Tight Waterproof	Shielded	Aluminum Alloy	19	Aerospace	14 mm	0.551 in	Push-Pull	Crimp	5 A	Male Pins Plug
LEMO FGN.2F.312.XLC	Nickel	200 °C	-15 °C	Gray	Brass	Gold	Polyetheretherketone (PEEK)	N	Free Hanging (In-Line)	312	1 µm	39.4 µin	Metal	UL94 V-0	IP67 - Dust Tight Waterproof	Shielded	Aluminum Alloy	12	Aerospace	14 mm	0.551 in	Push-Pull	Crimp	7 A	Male Pins Plug
LEMO FGN.2F.308.XLC	Nickel	200 °C	-15 °C	Gray	Brass	Gold	Polyetheretherketone (PEEK)	N	Free Hanging (In-Line)	308	1 µm	39.4 µin	Metal	UL94 V-0	IP67 - Dust Tight Waterproof	Shielded	Aluminum Alloy	8	Aerospace	14 mm	0.551 in	Push-Pull	Crimp	10 A	Male Pins Plug
LEMO FGN.2F.310.XLCS	Nickel	200 °C	-15 °C	Gray	Brass	Gold	Polyetheretherketone (PEEK)	N	Free Hanging (In-Line)	310	1 µm	39.4 µin	Metal	UL94 V-0	IP67 - Dust Tight Waterproof	Shielded	Aluminum Alloy	10	Aerospace	14 mm	0.551 in	Push-Pull	Crimp	8 A	Male Pins Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 88.70
		10	$ 81.39
		25	$ 78.26
		50	$ 75.66
		100	$ 71.48

Description

General part information

FGN.2F Series

8 Position Circular Connector Plug, Male Pins Crimp
