51-145.022D

Active

EAO

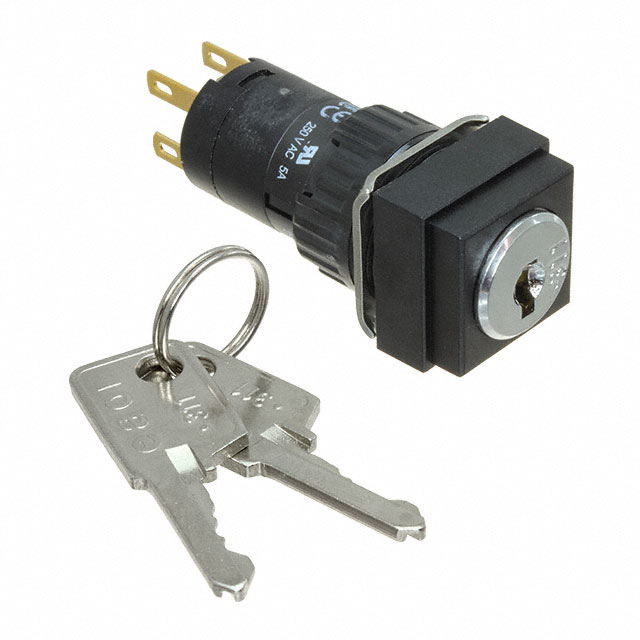

SWITCH KEYLOCK 2POS DPST 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH KEYLOCK 2POS DPST 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	51-145.022D

Actuator Type	Flat Key
Angle of Throw	42 °
Circuit	DPST-NO/NC
Contact Timing	Not Specified
Current Rating (Amps)	5 A
Depth Behind Flange	36 mm
Features	IP65
Key Removable Positions	1 only
Number of Positions	2
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom, On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Voltage Rating - AC	250 V

Part	Number of Positions	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Depth Behind Flange	Switch Function	Key Removable Positions	Contact Timing	Panel Cutout Dimensions [diameter]	Actuator Type	Termination Style	Termination Style	Termination Style	Current Rating (Amps)	Features	Circuit	Angle of Throw
EAO 51-145.022D	2	250 V	55 °C	-25 °C	36 mm	Off-Mom On-Mom	1 only	Not Specified	16 mm	Flat Key	0.11 in	Quick Connect Solder	2.8 mm	5 A	IP65	DPST-NO/NC	42 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 2 Position DPST-NO/NC 5A (AC) 250 VAC DC Panel Mount
