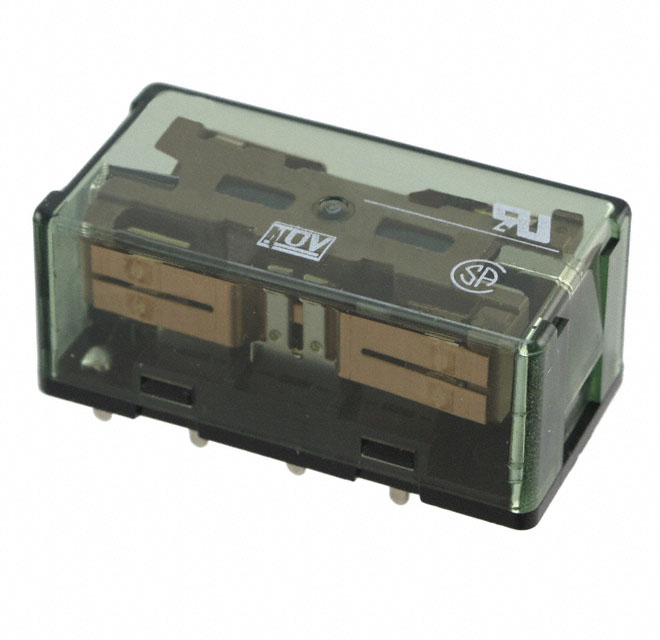

SP2-PL2-DC3V

Active

Panasonic Electric Works

RELAY GEN PURPOSE DPDT 15A 3V

Search across all available documentation for this part.

Active

Panasonic Electric Works

RELAY GEN PURPOSE DPDT 15A 3V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Contact Material	Release Time	Coil Current	Contact Form	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Operate Time	Coil Type	Must Operate Voltage	Coil Resistance	Load - Max Switching	Contact Rating (Current)	Switching Voltage [Max]	Approval Agency	Relay Type
Panasonic Electric Works SP2-PL2-DC5V	PC Pin	Silver Tin Oxide (AgSnO)	30 ms	60.2 mA	DPDT (2 Form C)	5 VDC	60 °C	-50 °C	Through Hole	30 ms	Latching Dual Coil	3.5 VDC	83 Ohms	450 W 3750 VA	15 A	30 VDC 250 VAC	CSA UR VDE	General Purpose
Panasonic Electric Works SP2-PL2-DC12V	PC Pin	Silver Tin Oxide (AgSnO)	30 ms		DPDT (2 Form C)	12 VDC	60 °C	-50 °C	Through Hole	30 ms	Latching Dual Coil	8.4 VDC	480 Ohms	450 W 3750 VA	15 A	30 VDC 250 VAC	CSA UR VDE	General Purpose
Panasonic Electric Works SP2-PL2-DC3V	PC Pin	Silver Tin Oxide (AgSnO)	30 ms	100 mA	DPDT (2 Form C)		60 °C	-50 °C	Through Hole	30 ms	Latching Dual Coil	2.1 VDC	30 Ohms	450 W 3750 VA	15 A	30 VDC 250 VAC	CSA UR VDE	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	20	$ 25.14
