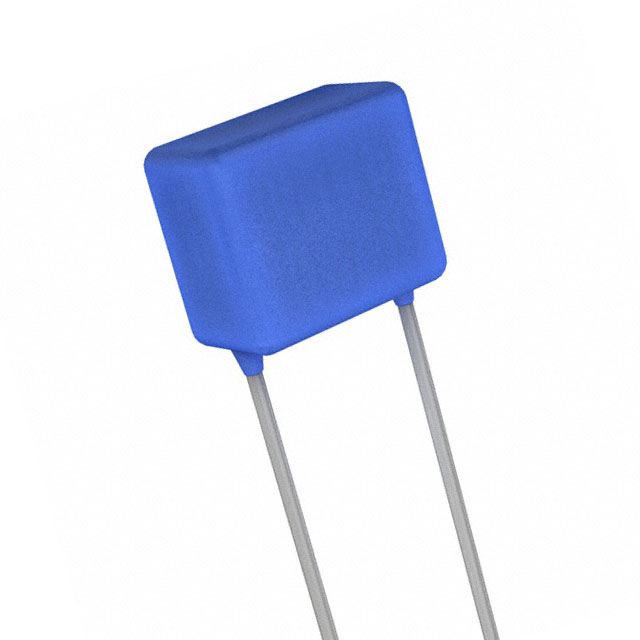

20HV12N101KN

Active

KEMET

CAP CER 100PF 2KV NP0 RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 100PF 2KV NP0 RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	20HV12N101KN

Applications	Downhole
Capacitance	100 pF
Features	High Voltage, High Temperature
Height - Seated (Max) [Max] [z]	0.4 in
Height - Seated (Max) [Max] [z]	10.16 mm
Lead Spacing	0.3 "
Lead Spacing	7.62 mm
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	10.67 mm
Size / Dimension [x]	0.42 in
Size / Dimension [y]	6.35 mm
Size / Dimension [y]	0.25 in
Temperature Coefficient	NP0, C0G
Tolerance	10 %
Voltage - Rated	2 kV
Voltage - Rated	2000 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Capacitance	Voltage - Rated	Voltage - Rated	Features	Lead Style	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Temperature Coefficient	Lead Spacing	Lead Spacing	Tolerance	Mounting Type
KEMET 20HV12N101KN	-55 °C	200 °C	Downhole	6.35 mm	10.67 mm	0.25 in	0.42 in	100 pF	2 kV	2000 V	High Temperature High Voltage	Straight	Radial	0.4 in	10.16 mm	C0G NP0	0.3 "	7.62 mm	10 %	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

100 pF ±10% 2000V (2kV) Ceramic Capacitor C0G, NP0 Radial
