REC3-4815DRWZ/H2/A/SMD

Active

RECOM Power

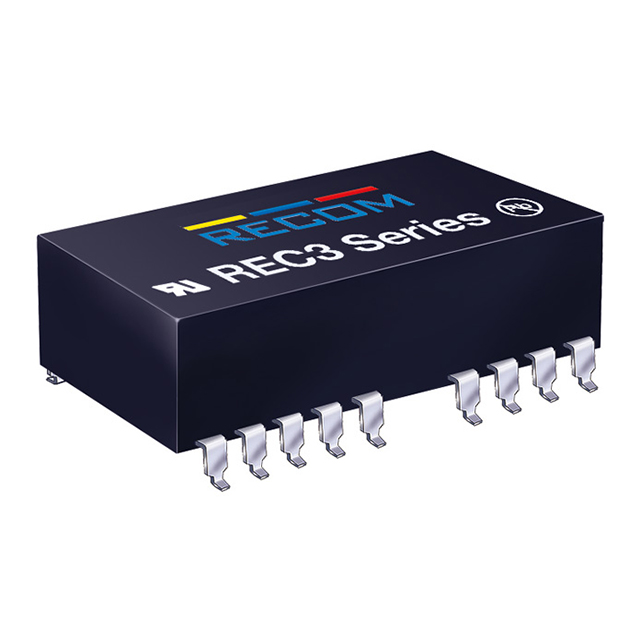

ISOLATED DC/DC CONVERTERS - SMD 3W DC/DC 2KV REG 4:1 18-72VIN +/-15VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

REC3-4815DRWZ/H2/A/SMD

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 3W DC/DC 2KV REG 4:1 18-72VIN +/-15VOUT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	REC3-4815DRWZ/H2/A/SMD

Applications	ITE (Commercial)
Current - Output (Max)	100 mA
Current - Output (Max)	100 mA
Efficiency	85 %
Features	SCP
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-SMD Module, 18 Leads
Power (Watts)	3 W
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	19.9 mm
Size / Dimension [y]	0.78 in
Size / Dimension [z]	11.2 mm
Size / Dimension [z]	0.44 "
Type	Isolated Module
Voltage - Input (Max) [Max]	72 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	2000 V
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

REC3-S_DRW(Z) Series

Isolated DC/DC Converters - SMD 3W DC/DC 2kV REG 2:1 9-18Vin 3.3Vout

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Applications	Voltage - Output 2	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Features	Voltage - Output 1	Voltage - Input (Min) [Min]	Power (Watts)	Current - Output (Max)	Current - Output (Max)	Package / Case	Mounting Type	Voltage - Isolation	Voltage - Input (Max) [Max]	Control Features	Current - Output (Max) [Max]	Current - Output (Max)
RECOM Power REC3-4815DRWZ/H2/A/SMD	85 °C	-40 °C	85 %	ITE (Commercial)	-15 V	Isolated Module	11.2 mm	19.9 mm	32 mm	0.78 in	1.26 in	0.44 "	2	SCP	15 V	18 V	3 W	100 mA	100 mA	24-SMD Module 18 Leads	Surface Mount	2000 V	72 V
RECOM Power REC3-4815SRWZ/H4/A/CTRL	85 °C	-40 °C	85 %	ITE (Commercial) Medical		Isolated Module	10.2 mm	20.3 mm	32 mm	0.8 in	1.26 in	0.4 "	1	Remote On/Off SCP	15 V	18 V	3 W			24-DIP Module 8 Leads	Through Hole	4000 V	72 V	Active Low Enable	200 mA
RECOM Power REC3-2409DRWZ/H2/C/SMD-R	85 °C	-40 °C	83 %	ITE (Commercial)	-9 V	Isolated Module	11.2 mm	19.9 mm	32 mm	0.78 in	1.26 in	0.44 "	2	SCP	9 V	9 V	3 W	165 mA	165 mA	24-SMD Module 18 Leads	Surface Mount	2000 V	36 V
RECOM Power REC3-0509DRW/H6/A/SMD	80 C	-40 °C	83 %	ITE (Commercial) Medical	-9 V	Isolated Module	11.2 mm	19.9 mm	32 mm	0.78 in	1.26 in	0.44 "	2	SCP	9 V	4.5 V	3 W	165 mA	165 mA	24-SMD Module 18 Leads	Surface Mount	6000 V	9 V
RECOM Power REC3-2412DRWZ/H2/A	85 °C	-40 °C	85 %	ITE (Commercial)	-12 V	Isolated Module	10.2 mm	20.3 mm	32 mm	0.8 in	1.26 in	0.4 "	2	SCP	12 V	9 V	3 W	125 mA		24-DIP Module 8 Leads	Through Hole	2000 V	36 V			125 mA
RECOM Power REC3-1215DRW/H2/A/SMD/CTRL	85 °C	-40 °C	86 %	ITE (Commercial)	-15 V	Isolated Module	11.2 mm	19.9 mm	32 mm	0.78 in	1.26 in	0.44 "	2	Remote On/Off SCP	15 V	9 V	3 W	100 mA	100 mA	24-SMD Module 18 Leads	Surface Mount	2000 V	18 V	Active Low Enable
RECOM Power REC3-4805DRWZ/H6/A/SMD-R	85 °C	-40 °C	80 %	ITE (Commercial) Medical	-5 V	Isolated Module	11.2 mm	19.9 mm	32 mm	0.78 in	1.26 in	0.44 "	2	SCP	5 V	18 V	3 W		300 mA	24-SMD Module 18 Leads	Surface Mount	6000 V	72 V
RECOM Power REC3-4805SRW/H4/C/SMD-R	85 °C	-40 °C	79 %	ITE (Commercial) Medical		Isolated Module	11.2 mm	19.9 mm	32 mm	0.78 in	1.26 in	0.44 "	1	SCP	5 V	36 V	3 W			24-SMD Module 18 Leads	Surface Mount	4000 V	72 V		600 mA
RECOM Power REC3-4809DRWZ/H/B/SMD	85 °C	-40 °C	83 %	ITE (Commercial)	-9 V	Isolated Module	11.2 mm	19.9 mm	32 mm	0.78 in	1.26 in	0.44 "	2	SCP	9 V	18 V	3 W	165 mA	165 mA	24-SMD Module 18 Leads	Surface Mount	1.6 kV	72 V
RECOM Power REC3-2405DRW/H4/C/SMD	85 °C	-40 °C	83 %	ITE (Commercial) Medical	-5 V	Isolated Module	11.2 mm	19.9 mm	32 mm	0.78 in	1.26 in	0.44 "	2	SCP	5 V	18 V	3 W		300 mA	24-SMD Module 18 Leads	Surface Mount	4000 V	36 V
