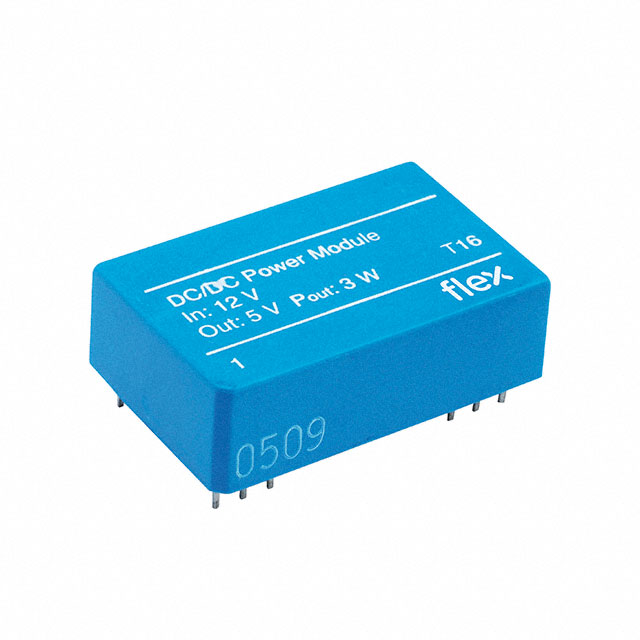

PKV5211PI
ActiveFlex Power Modules
DC DC CONVERTER 5V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PKV5211PI
ActiveFlex Power Modules
DC DC CONVERTER 5V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PKV5211PI |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, UL, IEC, TUV, CSA |
| Current - Output (Max) [Max] | 500 mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 95 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module, 10 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 10.7 mm |
| Size / Dimension [z] | 0.42 in |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 72 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 28.92 | |
| 5 | $ 28.70 | |||
| 10 | $ 28.47 | |||
| 25 | $ 28.03 | |||
| 40 | $ 26.69 | |||
| 150 | $ 24.47 | |||
| 300 | $ 24.02 | |||
Description
General part information
PKV521 Series
Isolated Module DC DC Converter 1 Output 5V 500mA 18V - 72V Input
