1814692

Active

Phoenix Contact

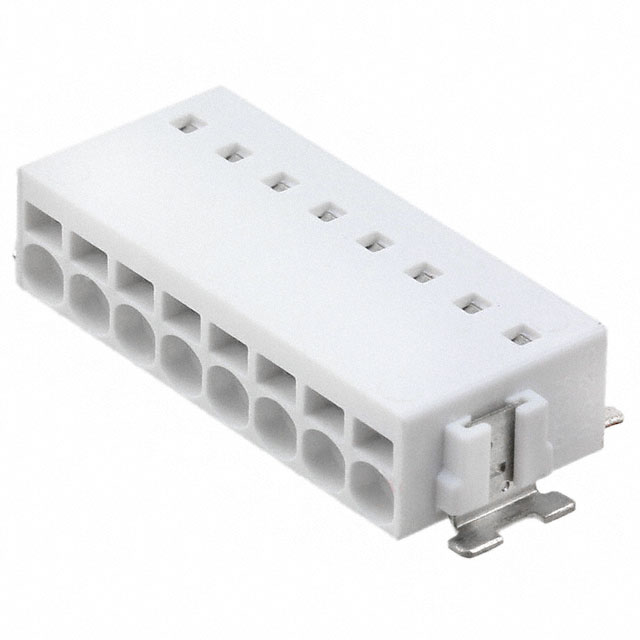

PLUGGABLE TERMINAL BLOCKS PTSM 0,5/ 8-2,5-H SMD WH R44

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS PTSM 0,5/ 8-2,5-H SMD WH R44

Technical Specifications

Parameters and characteristics for this part

Pluggable Terminal Blocks PTSM 0,5/ 8-2,5-H SMD WH R44

Part	Connector Type	Pitch [x]	Pitch [x]	Wire Gauge [Min]	Wire Gauge [Max]	Housing Color	Style	Voltage Rating	Termination	Mounting Type	Housing Material	Current Rating (Amps)	Features	Number of Positions	Header Orientation	Current - IEC	Material Flammability Rating	Contact Mating Finish	Insulation Height	Insulation Height	Number of Levels	Voltage - IEC	Contact Tail Length	Contact Tail Length	Color	Voltage - UL	Termination Style	Positions Per Level	Current - UL	Type
Phoenix Contact 1814647	Poke-In Wire Receptacle	0.098 in	2.5 mm	20 AWG	26 AWG	White	Board to Cable/Wire	150 VDC	Solder	Surface Mount Right Angle	Polyamide (PA) Nylon	5 A	Solder Retention
Phoenix Contact 1814692	Poke-In Wire Receptacle	0.098 in	2.5 mm	20 AWG	26 AWG	White	Board to Cable/Wire	150 VDC	Solder	Surface Mount Right Angle	Polyamide (PA) Nylon	5 A	Solder Retention	8
Phoenix Contact 1810780		0.098 in	2.5 mm							Through Hole	Liquid Crystal Polymer (LCP)		Board Guide	2	90° Right Angle	6 A	UL94 V-0	Tin	0.197 in	5 mm	1	200 V	2.1 mm	0.083 "	Black	150 V	Solder	2	5 A	Header Female Sockets
Phoenix Contact 1708017		0.098 in	2.5 mm							Surface Mount	Polyamide (PA) Nylon		Solder Retention	8	90° Right Angle	6 A	UL94 V-0	Tin	0.197 in	5 mm	1	160 V	2 mm	0.079 in	White	150 V	Solder	8	5 A	Header Male Pins Shrouded (4 Side)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.24
	Digi-Reel®	1	$ 1.24
	Tape & Reel (TR)	770	$ 1.37
		1540	$ 1.26
		2310	$ 1.24
Sager	N/A	770	$ 1.55

General part information

Pluggable Terminal Blocks PTSM 0,5/ 8-2,5-H SMD WH R44

Technical documentation and resources
