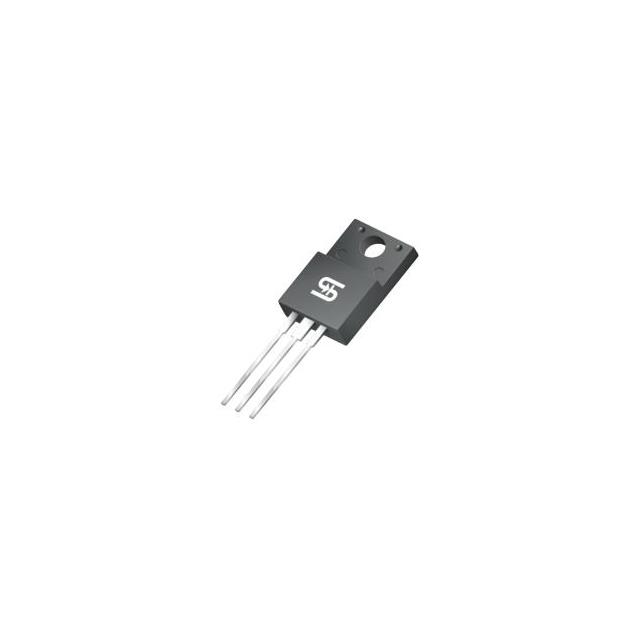

UGF1006GA

Active

Taiwan Semiconductor Corporation

20NS, 10A, 400V, ULTRA FAST RECOVERY RECTIFIER

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

20NS, 10A, 400V, ULTRA FAST RECOVERY RECTIFIER

Technical Specifications

Parameters and characteristics for this part

Specification	UGF1006GA

Current - Average Rectified (Io) (per Diode)	10 A
Current - Reverse Leakage @ Vr	10 µA
Diode Configuration	1 Pair Common Anode
Grade	Automotive
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	TO-220-3 Full Pack, Isolated Tab
Qualification	AEC-Q101
Reverse Recovery Time (trr)	20 ns
Speed	200 mA, 500 ns
Supplier Device Package	ITO-220AB
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V
Voltage - Forward (Vf) (Max) @ If	1.25 V

Part	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Grade	Voltage - Forward (Vf) (Max) @ If	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Diode Configuration	Supplier Device Package	Reverse Recovery Time (trr)	Qualification	Technology	Mounting Type	Speed	Current - Average Rectified (Io) (per Diode)
Taiwan Semiconductor Corporation UGF1006GA	10 µA	400 V	Automotive	1.25 V	TO-220-3 Full Pack Isolated Tab	175 ░C	-55 C	1 Pair Common Anode	ITO-220AB	20 ns	AEC-Q101	Standard	Through Hole	200 mA 500 ns	10 A
Taiwan Semiconductor Corporation UGF1006GH	10 µA	400 V	Automotive	1.25 V	TO-220-3 Full Pack Isolated Tab	175 ░C	-55 C	1 Pair Common Cathode	ITO-220AB	20 ns	AEC-Q101	Standard	Through Hole	200 mA 500 ns	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Common Anode 400 V 10A Through Hole TO-220-3 Full Pack, Isolated Tab
