012520WF037

Active

Essentra Access Solutions

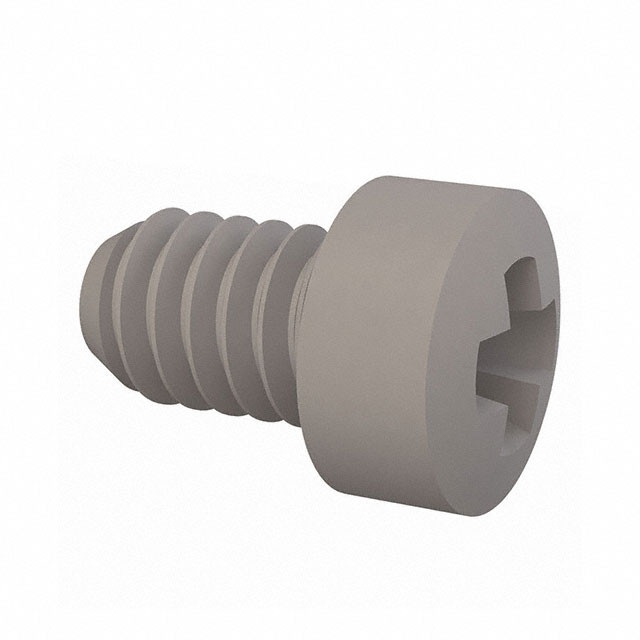

FILLISTER PHILLIPS SCREW 1/4-20

Search across all available documentation for this part.

Active

Essentra Access Solutions

FILLISTER PHILLIPS SCREW 1/4-20

Technical Specifications

Parameters and characteristics for this part

Part	Thread Size	Screw Head Type	Length - Overall [x]	Length - Overall [x]	Drive Type	Material	Type	Length - Below Head [x]	Length - Below Head	Length - Below Head	Length - Below Head	Length - Overall	Length - Overall	Length - Below Head [x]	Head Diameter [diameter]	Head Diameter [diameter]	Head Height	Head Height	Length - Below Head [custom]	Length - Below Head [custom]	Length - Below Head
Essentra Access Solutions 012520WF150	1/4"-20	Pan Head	1.908 in	48.46 mm	Phillips	Nylon	Machine Screw	1.5 in	38.1 mm
Essentra Access Solutions 012520WF075	1/4"-20	Pan Head	1.158 in	29.41 mm	Phillips	Nylon	Machine Screw		19.05 mm	0.75 "	0.75 "
Essentra Access Solutions 012520WF062	1/4"-20	Pan Head			Phillips	Nylon	Machine Screw		15.88 mm	0.625 in	0.625 in	26.24 mm	1.033 in
Essentra Access Solutions 012520WF037	1/4"-20	Pan Head	0.783 in	19.89 mm	Phillips	Nylon	Machine Screw		0.375 "	9.53 mm	0.375 "
Essentra Access Solutions 012520WF175	1/4"-20	Pan Head	2.158 in	54.81 mm	Phillips	Nylon	Machine Screw	1.75 in						44.45 mm
Essentra Access Solutions 012520WF087	1/4"-20	Pan Head	1.283 "	32.59 mm	Phillips	Nylon	Machine Screw	0.875 in	0.875 in	22.23 mm
Essentra Access Solutions 012520WF100	1/4"-20	Binding Head			Phillips	Nylon			25.4 mm		1 in				9.93 mm	0.391 "	0.205 in	5.21 mm
Essentra Access Solutions 012520WF031	1/4"-20	Pan Head			Phillips	Nylon	Machine Screw												7.94 mm	0.313 in
Essentra Access Solutions 012520WF050	1/4"-20	Binding Head	0.705 in	17.91 mm	Phillips	Nylon			12.7 mm		0.5 in				9.93 mm	0.391 "	0.205 in	5.21 mm			1/2
Essentra Access Solutions 012520WF125	1/4"-20	Pan Head	1.658 in	42.11 mm	Phillips	Nylon	Machine Screw	1.25 in						31.75 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.07

General part information

1/4"-20 Pan Head Machine Screw Phillips Drive Nylon

Technical documentation and resources

No documents available
