09300060318ML

Active

HARTING Technology Group

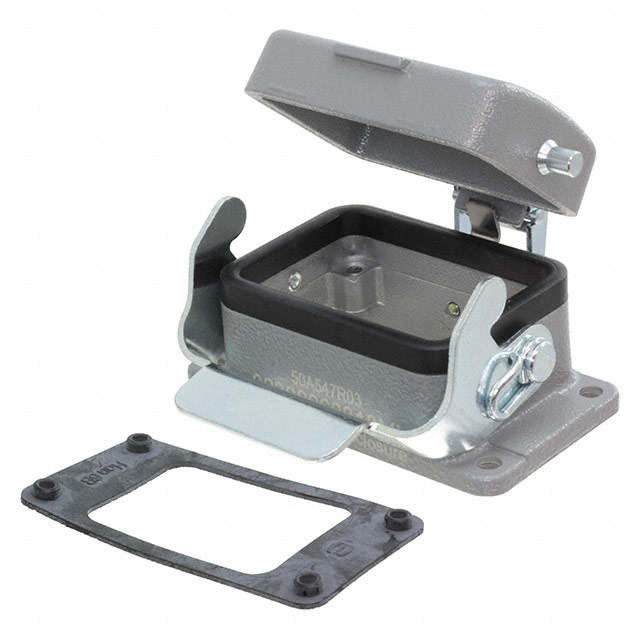

6B BULKHEAD HOUSING, SINGLE LEVER, W/ METAL COVER, W/ METAL LEVER

Search across all available documentation for this part.

Active

HARTING Technology Group

6B BULKHEAD HOUSING, SINGLE LEVER, W/ METAL COVER, W/ METAL LEVER

Technical Specifications

Parameters and characteristics for this part

Specification	09300060318ML

Connector Type	Base - Panel Mount
Features	Cover
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	3.15 in
Size / Dimension [x]	80 mm
Size / Dimension [y]	43.4 mm
Size / Dimension [y]	1.709 in
Size / Dimension [z]	1.138 "
Size / Dimension [z]	28.9 mm
Style	Bottom Entry

Part	Style	Lock Location	Connector Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Housing Material	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Features	Housing Color	Housing Finish	Size
HARTING Technology Group 09300060318ML	Bottom Entry	Locking Clip (1) on Base Bottom	Base - Panel Mount	43.4 mm	1.138 "	1.709 in	28.9 mm	3.15 in	80 mm	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Cover	Gray	Powder Coated	6B
HARTING Technology Group 09300060311ML	Bottom Entry	Locking Clip (1) on Base Bottom	Base - Panel Mount	43.4 mm	1.138 "	1.709 in	28.9 mm	3.15 in	80 mm								6B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry 6B IP65 - Dust Tight, Water Resistant
