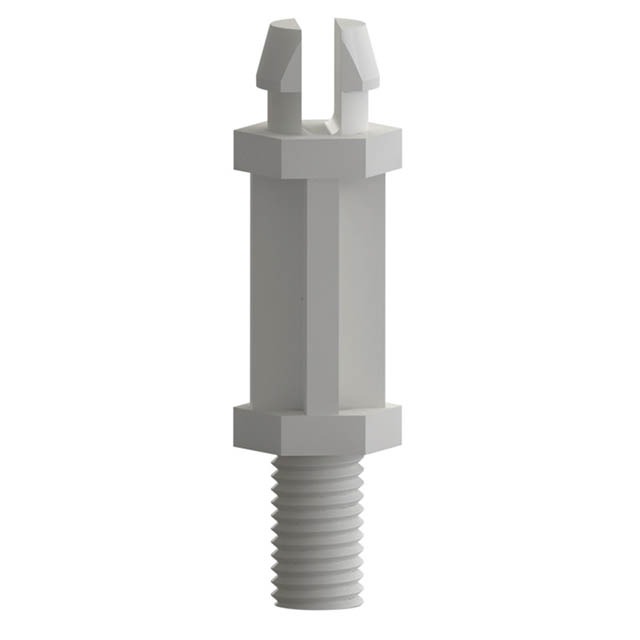

TCBNS-M3-3

Active

Essentra Access Solutions

BRD SPT THR STUD SNAP LOCK 3MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

BRD SPT THR STUD SNAP LOCK 3MM

Technical Specifications

Parameters and characteristics for this part

Specification	TCBNS-M3-3

Between Board Height	3 mm
Between Board Height	0.118 in
Features	M3 Thread
Holding Type	Threaded Stud
Length - Overall	13 mm
Length - Overall	0.512 "
Material	Nylon
Mounting Hole Diameter [diameter]	0.118 in
Mounting Hole Diameter [diameter]	3 mm
Mounting Panel Thickness	0.063 in
Mounting Panel Thickness	1.6 mm
Mounting Type	Snap Lock
Support Panel Thickness	0.236 in
Support Panel Thickness	6 mm

Part	Length - Overall	Length - Overall	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Type	Material	Support Panel Thickness	Support Panel Thickness	Between Board Height	Between Board Height	Features	Mounting Panel Thickness	Mounting Panel Thickness	Holding Type
Essentra Access Solutions TCBNS-M3-3	13 mm	0.512 "	0.118 in	3 mm	Snap Lock	Nylon	0.236 in	6 mm	3 mm	0.118 in	M3 Thread	0.063 in	1.6 mm	Threaded Stud

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Board Support Threaded Stud / Snap Lock Nylon 0.118" (3.00mm)

Technical documentation and resources

No documents available
