0192120001
ActiveMolex

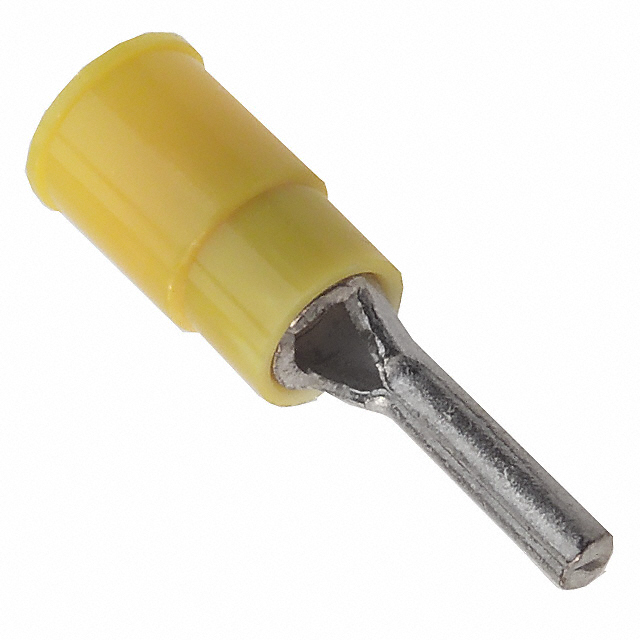

CONN WIRE PIN TERM 10-12AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0192120001
ActiveMolex
CONN WIRE PIN TERM 10-12AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0192120001 |
|---|---|
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | Copper |
| Diameter - Barrel ID [diameter] | 0.126 in |
| Diameter - Barrel ID [diameter] | 3.2 mm |
| Insulation | Insulated |
| Insulation Diameter | 0.25 " |
| Insulation Diameter | 6.35 mm |
| Length - Overall [x] | 1.12 " |
| Length - Overall [x] | 28.45 mm |
| Length - Termination | 0.545 in |
| Length - Termination | 13.84 mm |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Pin Diameter [diameter] | 0.107 in |
| Pin Diameter [diameter] | 2.72 mm |
| Termination | Crimp |
| Wire Gauge [Max] | 12 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.42 | |
| 10 | $ 0.36 | |||
| 100 | $ 0.28 | |||
| 1000 | $ 0.23 | |||
Description
General part information
019212 Series
Wire Pin Terminal Connector 10-12 AWG InsulKrimp Crimp
