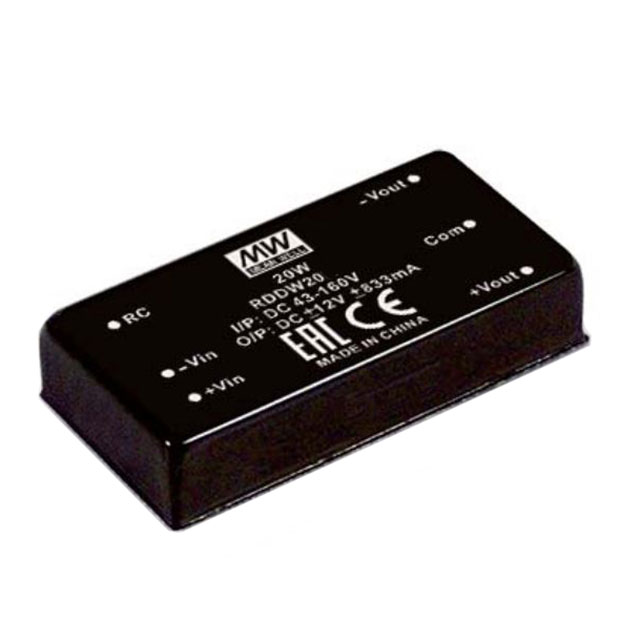

RDDW20H-12

Active

MEAN WELL USA Inc.

DC/DC CONVERTER

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

DC/DC CONVERTER

Technical Specifications

Parameters and characteristics for this part

Specification	RDDW20H-12

Approval Agency	UKCA, CE, EAC
Current - Output (Max) [Max]	1.833 A
Current - Output (Max) [Max]	1.833 A
Efficiency	89 %
Features	Remote On/Off, Adjustable Output
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	44 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	160 V
Voltage - Input (Min) [Min]	43 V
Voltage - Isolation	3000 V
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

Part	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output 1	Voltage - Input (Min) [Min]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Input (Max) [Max]	Features	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Approval Agency	Number of Outputs	Voltage - Output 2	Efficiency	Package / Case	Current - Output (Max)	Current - Output (Max)
MEAN WELL USA Inc. RDDW20H-12	1.833 A	1.833 A	12 V	43 V	3000 V	85 °C	-40 °C	Isolated Module	160 V	Adjustable Output Remote On/Off	44 W	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	CE EAC UKCA	2	-12 V	89 %	6-DIP Module
MEAN WELL USA Inc. RDDW20H-15			15 V	43 V	3000 V	85 °C	-40 °C	Isolated Module	160 V	Adjustable Output Remote On/Off	20 W	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	Through Hole	CE EAC UKCA	2	-15 V	88.5 %	6-DIP Module	667 mA	667 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 1.833A, 1.833A 43V - 160V Input
