Q-0202H0001006i

Active

Amphenol Custom Cable

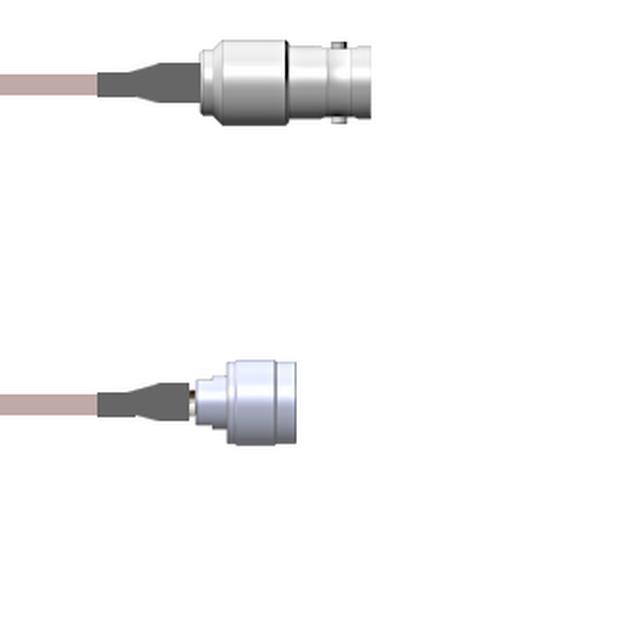

CBL ASSY BNC-NTYPE JACK-PLUG 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0202H0001006i

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE JACK-PLUG 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0202H0001006i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0202H0 Series

Part	Style	Color	1st Contact Gender	Features	Length	Length	Length	2nd Contact Gender	Cable Type	Overall Impedance	Frequency - Max [Max]	2nd Connector	1st Connector	2nd Connector Mounting Type	1st Connector Mounting Type
Amphenol Custom Cable Q-0202H0001048i	BNC to N-Type	Copper	Female	Shielded	1200 mm	4 ft	48 in	Male	RG-178	50 Ohms	4 GHz	N-Type Plug	BNC Jack	Free Hanging (In-Line)	Free Hanging (In-Line)
Amphenol Custom Cable Q-0202H00012.5M	BNC to N-Type	Copper	Female	Shielded	2.5 m	8.2 '	98.4 in	Male	RG-178	50 Ohms	4 GHz	N-Type Plug	BNC Jack	Free Hanging (In-Line)	Free Hanging (In-Line)
Amphenol Custom Cable Q-0202H0001036i	BNC to N-Type	Copper	Female	Shielded	91.44 cm		36 in	Male	RG-178	50 Ohms	4 GHz	N-Type Plug	BNC Jack	Free Hanging (In-Line)	Free Hanging (In-Line)
Amphenol Custom Cable Q-0202H0001009i	BNC to N-Type	Copper	Female	Shielded	228.6 mm		9 "	Male	RG-178	50 Ohms	4 GHz	N-Type Plug	BNC Jack	Free Hanging (In-Line)	Free Hanging (In-Line)
Amphenol Custom Cable Q-0202H00011.5M	BNC to N-Type	Copper	Female	Shielded	1.5 m	4.9 ft	59.1 in	Male	RG-178	50 Ohms	4 GHz	N-Type Plug	BNC Jack	Free Hanging (In-Line)	Free Hanging (In-Line)
Amphenol Custom Cable Q-0202H0001024i	BNC to N-Type	Copper	Female	Shielded	609.6 mm		24 "	Male	RG-178	50 Ohms	4 GHz	N-Type Plug	BNC Jack	Free Hanging (In-Line)	Free Hanging (In-Line)
Amphenol Custom Cable Q-0202H0001006i	BNC to N-Type	Copper	Female	Shielded	152.4 mm		6 in	Male	RG-178	50 Ohms	4 GHz	N-Type Plug	BNC Jack	Free Hanging (In-Line)	Free Hanging (In-Line)
Amphenol Custom Cable Q-0202H0001084i	BNC to N-Type	Copper	Female	Shielded	2.1 m	7 ft	84 in	Male	RG-178	50 Ohms	4 GHz	N-Type Plug	BNC Jack	Free Hanging (In-Line)	Free Hanging (In-Line)
Amphenol Custom Cable Q-0202H0001002M	BNC to N-Type	Copper	Female	Shielded	2 m	6.6 ft	78.7 in	Male	RG-178	50 Ohms	4 GHz	N-Type Plug	BNC Jack	Free Hanging (In-Line)	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 62.02
		25	$ 60.88
		50	$ 59.74
		100	$ 58.60
		250	$ 57.46

Description

General part information

Q-0202H0 Series

Cable Assembly Coaxial BNC to N-Type RG-178 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
