ADCD-12BFDC-LL7SP0

Active

Amphenol LTW

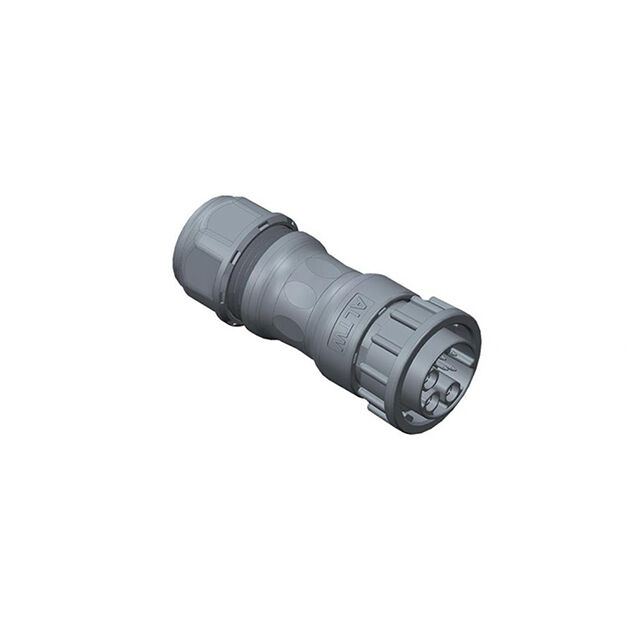

CERES, LARGE SIZE, PLASTIC, 20A+5A, 12 PINS, FEMALE CONNECTOR, FEMALE (POWER) + MALE (SIGNAL) CONTACT, STRAIGHT, 2 POINTS LOCK,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ADCD-12BFDC-LL7SP0

Active

Amphenol LTW

CERES, LARGE SIZE, PLASTIC, 20A+5A, 12 PINS, FEMALE CONNECTOR, FEMALE (POWER) + MALE (SIGNAL) CONTACT, STRAIGHT, 2 POINTS LOCK,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ADCD-12BFDC-LL7SP0

Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Cable Opening [Max] [custom]	0.394 in
Cable Opening [Max] [custom]	10 mm
Cable Opening [Min] [custom]	8 mm
Cable Opening [Min] [custom]	0.315 in
Color	Black
Connector Type	Male Pins, Plug, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A, 20 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	9
Number of Positions [custom]	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	D
Shielding	Unshielded
Termination	Crimp
Voltage Rating	250 VDC

ADCD-12BFDC Series

Part	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Ingress Protection	Contact Finish - Mating	Current Rating (Amps)	Contact Material	Shell Size - Insert	Mounting Type	Connector Type	Color	Termination	Orientation	Shielding	Material Flammability Rating	Backshell Material, Plating	Number of Positions [custom]	Number of Positions [custom]	Primary Material	Insert Material	Voltage Rating	Cable Opening [custom]	Cable Opening [custom]
Amphenol LTW ADCD-12BFDC-LL7LP0	12 mm	14 mm	0.472 in	0.551 in	Glass Filled Nylon Polyamide (PA)	-40 °C	105 ░C	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Gold	5 A 20 A	Copper Alloy	D	Free Hanging (In-Line)	Female Sockets Male Pins Plug	Black	Crimp	Keyed	Unshielded	UL94 V-0	Glass Filled Nylon Polyamide (PA)	9	3	Plastic	Polyamide (PA) Nylon Glass Filled	250 VDC
Amphenol LTW ADCD-12BFDC-LL7SP0	8 mm	10 mm	0.315 in	0.394 in	Glass Filled Nylon Polyamide (PA)	-40 °C	105 ░C	Backshell	IP67 - Dust Tight Waterproof	Gold	5 A 20 A	Copper Alloy	D	Free Hanging (In-Line)	Female Sockets Male Pins Plug	Black	Crimp	Keyed	Unshielded	UL94 V-0	Glass Filled Nylon Polyamide (PA)	9	3	Plastic	Polyamide (PA) Nylon Glass Filled	250 VDC
Amphenol LTW ADCD-12BFDC-LL7MP0					Glass Filled Nylon Polyamide (PA)	-40 °C	105 ░C	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Gold	5 A 20 A	Copper Alloy	D	Free Hanging (In-Line)	Female Sockets Male Pins Plug	Black	Crimp	Keyed	Unshielded	UL94 V-0	Glass Filled Nylon Polyamide (PA)	9	3	Plastic	Polyamide (PA) Nylon Glass Filled	250 VDC	10 mm 12 mm	0.394 in 0.472 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 9.74
Newark	Each	10	$ 11.41
		25	$ 10.38
		50	$ 9.73
		100	$ 9.35
		250	$ 8.53

Description

General part information

ADCD-12BFDC Series

12 (9 + 3 Power) Position Circular Connector Plug, Female Sockets and Male Pins Crimp
