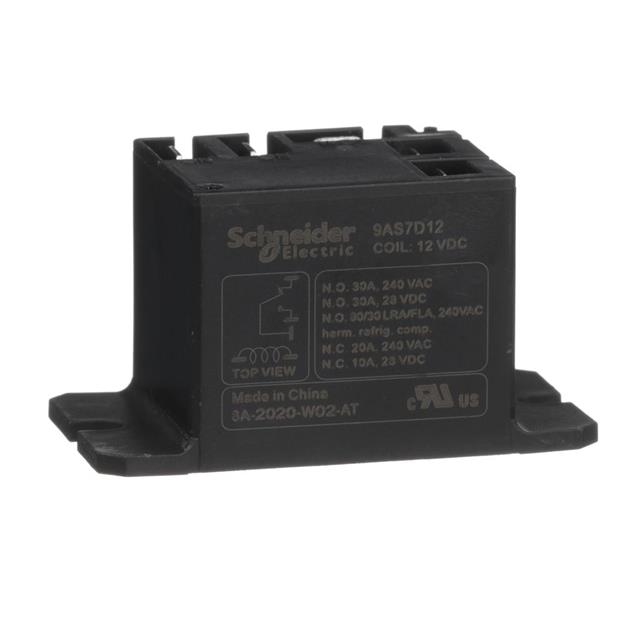

9AS7D12
ActiveSQUARE D BY SCHNEIDER ELECTRIC
ELECTROMECHNICAL POWER RELAYS, S
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9AS7D12 |
|---|---|
| Approval Agency | UL |
| Coil Current | 77.4 mA |
| Coil Resistance | 155 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 30 A |
| Load - Max Switching | 840 W |
| Load - Max Switching | 8310 VA |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 277 VAC, 28 VDC |
| Termination Style | Quick Connect - 0.187"/0.250" |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 22.68 | |
| 10 | $ 21.54 | |||
| 25 | $ 20.41 | |||
| 50 | $ 19.27 | |||
| 100 | $ 18.14 | |||
| 250 | $ 17.01 | |||
| 500 | $ 16.05 | |||
Description
General part information
9AS7D Series
General Purpose Relay SPDT (1 Form C) 12VDC Coil Chassis Mount
