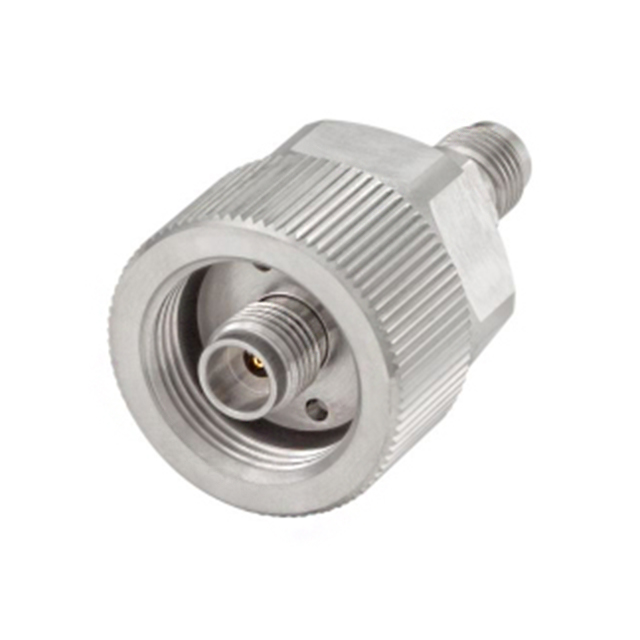

09KR121-K0AS3

Active

Rosenberger

PRECISION 2.40 TESTPORT ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION 2.40 TESTPORT ADAPTER

Technical Specifications

Parameters and characteristics for this part

Part	Conversion Type	Adapter Type	Insertion Loss	Mating Cycles	Impedance	Center Contact Plating	Dielectric Material	Convert From (Adapter End)	Convert To (Adapter End)	Frequency - Max [Max]	Center Contact Material	Style	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Adapter Series	Mounting Type	Center Gender	Convert To (Adapter End)
Rosenberger 09KR121-SR00S3	Same Series	Plug to Jack	0.35 dB	500	50 Ohms	Gold	Polyetheretherketone (PEEK)	2.4 mm	2.4mm (APC-2.4 OS-50) Plug Male Pin	50 GHz	Beryllium Copper	Straight	85 °C	-40 °C	Stainless Steel	RPC-2.40	Free Hanging (In-Line)
Rosenberger 09KR121-K0AS3	Same Series	Jack to Jack	0.35 dB	500	50 Ohms	Gold	Polyetheretherketone (PEEK)	2.4 mm		50 GHz	Beryllium Copper	Straight	85 °C	-40 °C	Stainless Steel	RPC-2.40	Free Hanging (In-Line)	Female to Female	2.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1458.93

General part information

Adapter Coaxial Connector 2.4mm (APC-2.4, OS-50) Jack, Female Socket To 2.4mm (APC-2.4, OS-50) Jack, Female Socket 50 Ohms

Technical documentation and resources

No documents available
