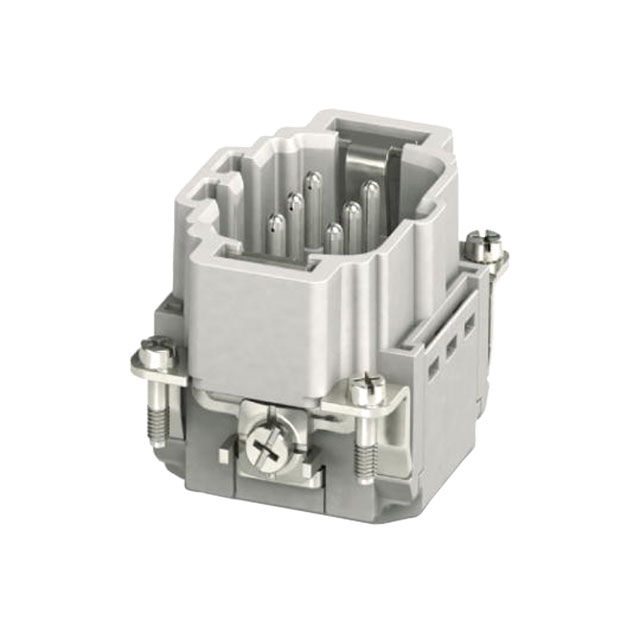

1407728

Active

Phoenix Contact

CONNECTOR: HDC; CONTACT INSERT; MALE; PIN: 6; 16A; 500V; HEAVYCON

Search across all available documentation for this part.

Active

Phoenix Contact

CONNECTOR: HDC; CONTACT INSERT; MALE; PIN: 6; 16A; 500V; HEAVYCON

Technical Specifications

Parameters and characteristics for this part

Specification	1407728

Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	6+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	B6
Termination Style	Push In
Voltage Rating	600 V

Heavy Duty Power Connectors HC-CST

Part	Accessory Type	For Use With/Related Products	Ratings	Specifications	Size	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Voltage Rating	Contact Material	Termination Style	Gender	Material Flammability Rating	Housing Material	Current Rating (Amps)	Contact Finish	Connector Type
Phoenix Contact 1676857	Keying Plug	Heavycon® D and DD Inserts
Phoenix Contact 1644300	Cover with Retaining Cord	Heavycon® D7 Bases	IP54	2 LED Light Fans
Phoenix Contact 1407728					B6	125 °C	-40 °C	6+Ground	600 V	Copper Alloy	Push In	Male	UL94 V-0	Polycarbonate (PC)	13 A	Silver
Phoenix Contact 1584758					B24	125 °C	-40 °C	46+Ground	500 V		Crimp	Female	UL94 V-0	Polycarbonate (PC)	16 A		Insert without Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heavy Duty Power Connectors HC-CST
