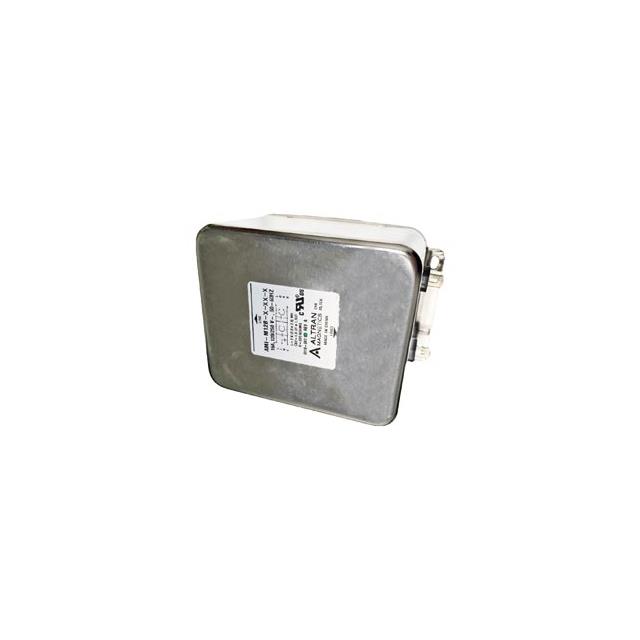

AMI-M12B-1-10-B

Active

Altran Magnetics, LLC

LINE FILTER 250VAC 10A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AMI-M12B-1-10-B

Active

Altran Magnetics, LLC

LINE FILTER 250VAC 10A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AMI-M12B-1-10-B

Applications	General Purpose
Configuration	Two Stage
Current	10 A
Filter Type	Single Phase
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Termination Style	Quick Connect
Voltage - Rated AC	250 V

AMI-M12B Series

Part	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Filter Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Configuration	Current	Inductance	Voltage - Rated AC
Altran Magnetics, LLC AMI-M12B-3-12-B	IEC 320-C14 Quick Connect	-10 °C	40 °C	General Purpose	Chassis Mount	Single Phase	60 Hz	50 Hz	Two Stage	12 A	7.88 mH	250 V
Altran Magnetics, LLC AMI-M12B-3-10-B	Quick Connect	-10 °C	40 °C	General Purpose	Chassis Mount	Single Phase	60 Hz	50 Hz	Two Stage	10 A	14.26 mH	250 V
Altran Magnetics, LLC AMI-M12B-3-7-B	Wire Leads	-10 °C	40 °C	General Purpose	Chassis Mount	Single Phase	60 Hz	50 Hz	Two Stage	7 A	14.6 mH	250 V
Altran Magnetics, LLC AMI-M12B-6-20-B	Threaded Post (8-32)	-10 °C	40 °C	General Purpose	Chassis Mount	Single Phase	60 Hz	50 Hz	Two Stage	20 A		250 V
Altran Magnetics, LLC AMI-M12B-6-20-C	Threaded Post (8-32)	-10 °C	40 °C	General Purpose	Chassis Mount	Single Phase	60 Hz	50 Hz	Two Stage	20 A		250 V
Altran Magnetics, LLC AMI-M12B-3-6-B	Wire Leads	-10 °C	40 °C	General Purpose	Chassis Mount	Single Phase	60 Hz	50 Hz	Two Stage	6 A		250 V
Altran Magnetics, LLC AMI-M12B-1-3-B	Quick Connect	-10 °C	40 °C	General Purpose	Chassis Mount	Single Phase	60 Hz	50 Hz	Two Stage	3 A	14.12 mH	250 V
Altran Magnetics, LLC AMI-M12B-1-6-B	Quick Connect	-10 °C	40 °C	General Purpose	Chassis Mount	Single Phase	60 Hz	50 Hz	Two Stage	6 A		250 V
Altran Magnetics, LLC AMI-M12B-1-20-B	Quick Connect	-10 °C	40 °C	General Purpose	Chassis Mount	Single Phase	60 Hz	50 Hz	Two Stage	20 A		250 V
Altran Magnetics, LLC AMI-M12B-1-10-B	Quick Connect	-10 °C	40 °C	General Purpose	Chassis Mount	Single Phase	60 Hz	50 Hz	Two Stage	10 A		250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 34.15
		10	$ 27.86
		25	$ 25.68
		50	$ 24.15

Description

General part information

AMI-M12B Series

Single Phase EMC/EMI Line Filter 10 A 250V 50/60Hz Two Stage Quick Connect

Documents

Technical documentation and resources
