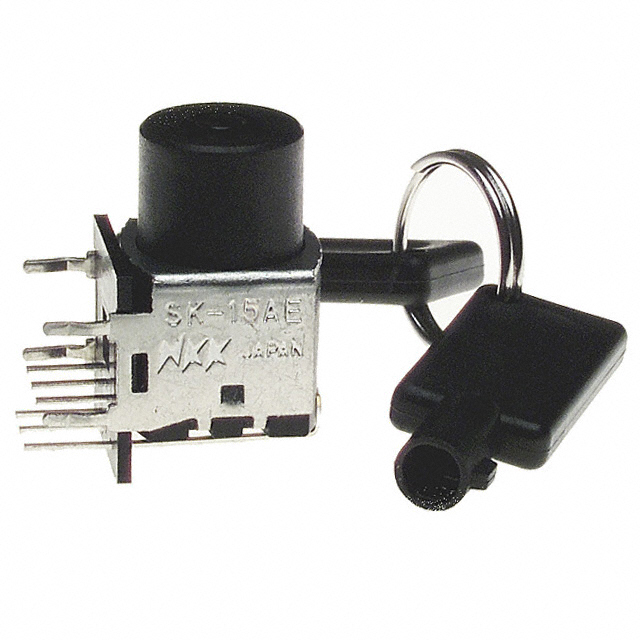

SK15AEG30

Active

NKK Switches

KEYLOCK SWITCH, ANTISTATIC SEALED, ON-ON-ON-ON-ON, SP5T, SK SERIES, 5 POSITION, PC PIN, RIGHT ANGLE

Search across all available documentation for this part.

Active

NKK Switches

KEYLOCK SWITCH, ANTISTATIC SEALED, ON-ON-ON-ON-ON, SP5T, SK SERIES, 5 POSITION, PC PIN, RIGHT ANGLE

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Contact Finish	Contact Timing	Key Removable Positions	Actuator Type	Mechanical Life	Contact Material	Voltage Rating - DC	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Circuit	Angle of Throw	Features	Mounting Type	Switch Function	Current Rating (Amps)
NKK Switches SK15AEG30	PC Pin	Gold	Non-Shorting	All	Tubular Key	30000 Steps	Beryllium Copper	28 V	28 V	70 °C	-25 °C	20000 Steps	SP5T	45 °	Antistatic Process Sealed	Through Hole	On-On-On-On-On	0.4 VA
NKK Switches SK15AEG13	PC Pin	Gold	Non-Shorting	All	Tubular Key	30000 Steps	Beryllium Copper	28 V	28 V	70 °C	-25 °C	20000 Steps	SP5T	45 °	Antistatic Process Sealed	Through Hole	On-On-On-On-On	0.4 VA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 5 Position SP5T 0.4VA (AC/DC) 28 VAC 28 VDC Through Hole
